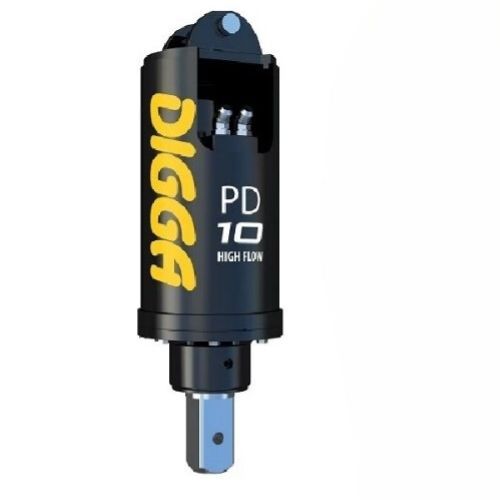

Digga PD10HF-5 High Flow Auger Drive Packages | Excavators & Backhoes 5 to 10 Ton | 75mm Square Hub
High Flow Auger Drive Packages for Excavators and Backhoes Requiring Maximum Drilling Performance
The Digga PD10HF-5 High Flow Auger Drive is engineered for excavators and backhoes operating in the 5 to 10 ton range with hydraulic flows between 100 and 200 litres per minute.
Featuring Digga's compact planetary gearbox design and proven Digga Bell Motor by Danfoss technology, the PD10HF-5 delivers exceptional torque, reliability, and drilling performance across demanding drilling applications.
The innovative gearbox design allows the gearbox to enter the hole during drilling, maximising drilling depth without extensions while reducing downtime and maintenance requirements.
The PD10HF-5 is supplied with a pressure relief valve fitted as standard and is designed for operators requiring maximum drilling performance in demanding conditions.
Ideal for civil contractors, utility contractors, fencing contractors, local councils, government departments, hire companies, agricultural operators and earthmoving businesses.
Please advise your machine make, model and pickup specifications in the special instructions section during checkout.
KEY FEATURES
• Compact high torque Digga manufactured gearbox
• Highly efficient design with fewer moving parts
• Fitted with a Digga Bell Motor by Danfoss
• Pressure relief valve fitted as standard
• Extreme duty shaft locking system
• Low maintenance design
• 5 year gearbox warranty
• 3 year motor warranty
• 75mm square output shaft
• Optional Halo Alignment System available
• Australian Made
SPECIFICATIONS
| Feature | Specification |
|---|---|
| Model | PD10HF-5 |
| Recommended Flow Range | 100 - 200 LPM |
| Nominal Torque | 9690 Nm |
| Motor | 6K Geroler |
| Maximum Pressure | 240 Bar |
| Overall Length | 950 mm |
| Diameter | 290 mm |
| Weight | 149 kg |
| Output Shaft | 75mm Square |
| Recommended Auger Series | 8 Series |
| Maximum Auger Diameter Earth | 1500 mm |
| Maximum Auger Diameter Clay and Shale | 1000 mm |
| Pressure Relief Valve | Standard |
AVAILABLE PACKAGE OPTIONS
| SKU | Package Description | Price Including GST |
| PD10HF-5 | Drive Unit No Hoses No Mount | $4,720 |
| PD10HF-5-EM | Double Pin Hitch Package No Hoses | $5,965 |
| PD10HF-5-EMC | Cradle Hitch Package No Hoses | $6,535 |
| PD10HF-5-SCS | Swing Control Package | $6,890 |
| PD10HF-5-TH | Telehandler Frame Package | $7,160 |
| PD10HF-5-TH-SCS | Telehandler Swing Control Package | $7,855 |
OPTIONAL HOSE PACKAGES
| Option | Price Including GST |
| 3m Hoses with 3/4 BSP Couplers | $515 |
| 4.5m Hoses with 3/4 BSP Couplers | $765 |
| 3m Hoses with Flush Face Couplers | $825 |
| 4.5m Hoses with Flush Face Couplers | $955 |
| 3m Hoses with Flush Face CC Couplers | $920 |
| 4.5m Hoses with Flush Face CC Couplers | $1,040 |
PACKAGE INCLUDES
Drive Unit Package Includes:
• Digga PD10HF-5 Auger Drive
• Pressure Relief Valve
• Linkage
• Selected Hitch Package
Quick connects to your machine are not included.
OPTIONAL EXTRAS
• Halo Alignment System
• Digga Augers
• Auger Extensions
• Auger Wear Parts
• Additional Hose Packages
WARRANTY & SUPPORT
Digga auger drives are backed by:
• 5 Year Gearbox Warranty
• 3 Year Motor Warranty
• Local Parts Support
• Local Technical Support
WHY CHOOSE HFP ATTACHMENTS
Most suppliers just import and move boxes — then you're on your own. HFP is different.
Australian-made or imported — all backed locally
Expert advice from purchase to installation
Local warranty, repairs & tech support — no back to overseas runarounds
Team who know attachments inside out
With HFP, you get:
Choice → Australian-made or imported
Support → Local service, repairs & warranty
Confidence → Trusted brand nationwide
Don't just buy attachments. Partner with the team that builds, backs & supports them.
IMPORTANT INFORMATION
Please advise your machine make, model and pickup specifications in the special instructions section during checkout.
Quick connects to your machine are not included.
Maximum drilling diameter is dependent on ground conditions and should be used as a guide only.
Images and pictures may not be to scale or represent the exact item supplied.
Optional Halo Alignment System available.
