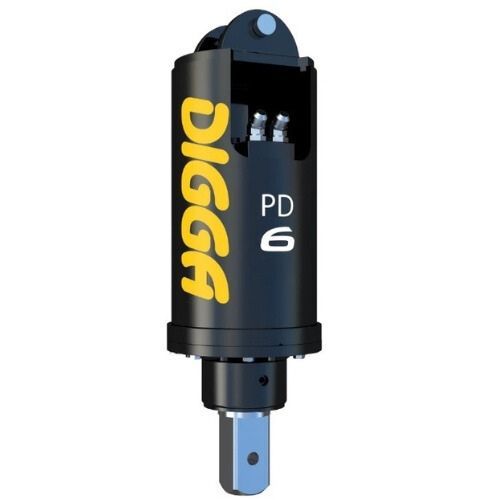

Digga PD6-5 Auger Drive Packages | Excavators & Backhoes 5 to 10 Ton | 75mm Square Hub

Premium Auger Drive Packages for Excavators and Backhoes in the 5 to 10 Ton Range

The Digga PD6-5 Auger Drive is engineered for excavators and backhoes operating in the 5 to 10 ton range with hydraulic flows between 70 and 115 litres per minute.

Featuring Digga's compact planetary gearbox design and proven Digga Bell Motor by Danfoss technology, the PD6-5 delivers exceptional torque, reliability, and drilling performance across a wide range of ground conditions.

The innovative gearbox design allows the gearbox to enter the hole during drilling, maximising drilling depth without extensions while reducing downtime and maintenance requirements.

Ideal for fencing contractors, civil construction companies, utility contractors, agricultural operators, local councils, government departments, hire companies and earthmoving businesses requiring a premium auger drive solution.

Please advise your machine make, model and pickup specifications in the special instructions section during checkout.

KEY FEATURES

• Compact high torque Digga manufactured gearbox

• Highly efficient design with fewer moving parts

• Fitted with a Digga Bell Motor by Danfoss

• No case drain required on excavators

• Extreme duty shaft locking system

• Low maintenance design

• 5 year gearbox warranty

• 3 year motor warranty

• Optional Halo Alignment System available

• Australian Made

SPECIFICATIONS

Feature	Specification
Model	PD6-5
Recommended Flow Range	70 - 115 LPM
Nominal Torque	5596 Nm
Motor	2K Geroler
Maximum Pressure	240 Bar
Overall Length	730 mm
Diameter	240 mm
Weight	89 kg
Output Shaft	75mm Square
Recommended Auger Series	6 Series
Maximum Auger Diameter Earth	1000 mm
Maximum Auger Diameter Clay and Shale	900 mm

AVAILABLE PACKAGE OPTIONS

SKU	Package Description	Price Including GST
PD6-5	Drive Unit with Hoses	$3,720
PD6-5-EM	Double Pin Hitch Package	$4,490
PD6-5-EMC	Cradle Hitch Package	$4,700
PD6-5-SCS	Swing Control Package	$5,725
PD6-5-TH	Telehandler Frame Package	$7,010
PD6-5-TH-SCS	Telehandler Swing Control Package	$7,700

PACKAGE INCLUDES

• Digga PD6-5 Auger Drive

• Hoses and couplers

• Selected hitch or frame option

• Linkage where applicable

Quick connects to your machine are not included.

WARRANTY & SUPPORT

Digga auger drives are backed by:

• 5 Year Gearbox Warranty

• 3 Year Motor Warranty

• Local Parts Support

• Local Technical Support

WHY CHOOSE HFP ATTACHMENTS

Most suppliers just import and move boxes — then you're on your own. HFP is different.

Australian-made or imported — all backed locally

Expert advice from purchase to installation

Local warranty, repairs & tech support — no back to overseas runarounds

Team who know attachments inside out

With HFP, you get:

Choice → Australian-made or imported

Support → Local service, repairs & warranty

Confidence → Trusted brand nationwide

Don't just buy attachments. Partner with the team that builds, backs & supports them.

IMPORTANT INFORMATION

Please advise your machine make, model and pickup specifications in the special instructions section during checkout.

Quick connects to your machine are not included.

Maximum drilling diameter is dependent on ground conditions and should be used as a guide only.

Images and pictures may not be to scale or represent the exact item supplied.

Optional Halo Alignment System available.
