Digga PD7-5 Auger Drive Packages | 5 to 10 Ton Excavators | 6040Nm Torque | From $3,890 inc GST

Australian-Made Auger Drive Packages For 5 to 10 Ton Excavators

The Digga PD7-5 Auger Drive range is engineered for excavators and backhoes operating between 75 and 115 LPM hydraulic flow, delivering exceptional drilling performance across civil construction, foundation drilling, screw piling, fencing, utility installation, landscaping, and agricultural applications.

Featuring Digga's premium planetary gearbox design, genuine Digga/Danfoss bell motor technology, and extreme-duty shaft locking system, the PD7-5 delivers outstanding torque, reliability, and service life in demanding drilling conditions.

The innovative design allows the gearbox to travel into the hole, maximising drilling depth without extensions, reducing downtime, minimising maintenance, and improving productivity.

Manufactured in Australia using premium-grade materials and industry-leading engineering, Digga auger drives are built for Australian conditions and backed by industry-leading warranty support.

KEY FEATURES

• Compact high-torque Digga manufactured gearbox

• Highly efficient design with fewer moving parts

• Fitted with a Digga Bell Motor by Danfoss

• No case drain required on excavators

• Full range of shafts available upon request

• Extreme-duty shaft locking system

• Low maintenance design

• 5-Year gearbox warranty

• 3-Year motor warranty

• HALO Alignment System available

• Swing Control options available

SUITABLE APPLICATIONS

• Civil construction

• Foundation drilling

• Screw piling

• Utility installation

• Pole installation

• Agricultural drilling

• Fencing

• Landscaping

• General earthworks

• Hire fleet applications

• Government and council projects

FUNCTIONAL OVERVIEW

Digga's PD7-5 auger drive delivers high torque output while maintaining excellent hydraulic efficiency and long-term durability.

The planetary gearbox design maximises drilling performance while reducing maintenance requirements. Combined with Digga's proven Bell Motor technology and heavy-duty shaft locking system, the PD7-5 provides reliable drilling performance in a wide range of ground conditions.

SPECIFICATIONS

Feature	Specification
Excavator Compatibility	5–10 Tonne
Recommended Flow Range	75–115 LPM
Nominal Torque	6040Nm
Motor Type	Digga Bell Motor by Danfoss
Pressure Valve	Optional
Energy Control Valve	N/A
Case Drain	Recommended for backhoes, not required for excavators
Maximum Pressure	240 Bar
Maximum Flow	115 LPM @ 130 Bar
Maximum Power	25kW (34HP)
Overall Length	734mm
Diameter	240mm
Weight	90kg
Output Shaft	75mm Square
Recommended Auger Series	6 Series
Maximum Auger Diameter Earth	1000mm
Maximum Auger Diameter Clay/Shale	900mm
HALO Compatible	Yes
Swing Control Compatible	Yes

PACKAGE OPTIONS & WEBSITE PRICING

Package	Price Inc GST
PD7-5 No Mount	$3,890
PD7-5 Crane Single Pin Hitch	$4,290
PD7-5 Double Pin Hitch	$4,690
PD7-5 Excavator Cradle Hitch	$4,890
PD7-5 Swing Control Hitch	$5,890
PD7-5 Telehandler Frame	$5,090
PD7-5 Telehandler Swing Control Frame	$5,990

HALO Alignment System Upgrade

Add HALO Alignment System to any compatible PD7 package.

HALO Upgrade: +$449 inc GST

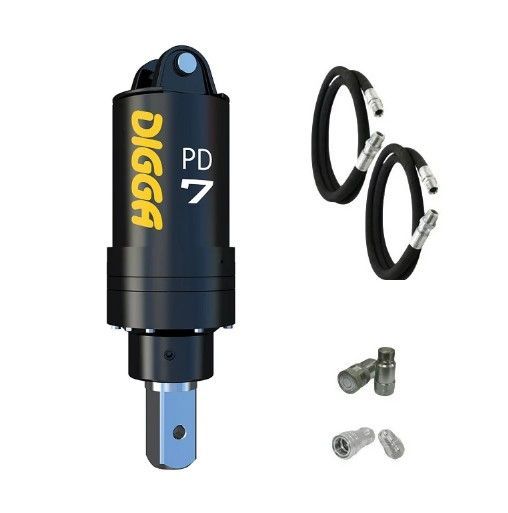

PACKAGE INCLUDES

• Digga PD7-5 Auger Drive

• Hydraulic Hoses

• Selected Mounting Configuration

Please note: Auger bits are sold separately.

WARRANTY & SUPPORT

All Digga products are backed locally by HFP Attachments with access to parts, technical support, and after-sales service.

• 5-Year Gearbox Warranty

• 3-Year Motor Warranty

• Local Technical Support

• Parts & Service Support Available

WHY CHOOSE HFP ATTACHMENTS

Most suppliers just import and move boxes — then you're on your own. HFP is different.

• Authorised Digga Dealer

• Expert advice from purchase through to installation

• Local warranty, repairs, and technical support

• Experienced team who understand fitment and real-world applications

With HFP, you get the right attachment, correctly fitted, and backed by local support.

IMPORTANT INFORMATION

To ensure correct fitment and operation, please provide:

• Machine Make

• Machine Model

• Hydraulic Flow

• Hydraulic Pressure

• Pin Diameter

• Pin Centre to Pin Centre

• Width Between Ears

• Quick Hitch Type

This attachment is configured to suit your machine setup. Final configuration and fitment are based on the specifications supplied by the customer.

Machines fitted with quick hitches may require additional clearance considerations depending on hitch design and geometry.

Product images are for illustrative purposes only.

Machine specifications should always be confirmed prior to ordering.
