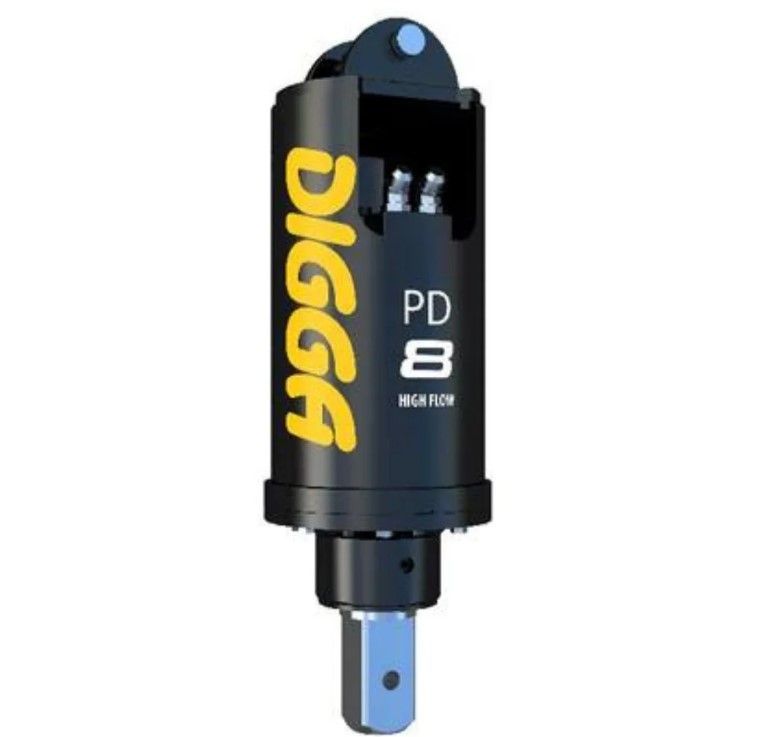

Digga PD8HF-5 High Flow Auger Drive Packages – 5 to 10 Ton Excavators – 75mm Square Drive
Digga PD8HF-5 High Flow Auger Drive Packages
The Digga PD8HF-5 High Flow Auger Drive is engineered for excavators, backhoes, telehandlers and specialised drilling applications requiring maximum torque, reliability and performance.
Designed for machines with hydraulic flows from 80 to 200 litres per minute, the PD8HF utilises Digga's proven planetary gearbox and heavy-duty hydraulic motor package to deliver exceptional drilling performance across earth, clay, shale and demanding ground conditions.
The innovative compact gearbox design allows the drive unit to enter the hole, maximising drilling depth while reducing the need for extensions. Combined with Digga's extreme-duty shaft locking system and low-maintenance design, the PD8HF is built for contractors who demand reliability and productivity.
Key Features
• Suitable for machines with 80–200 LPM hydraulic flow
• High torque planetary gearbox
• Digga heavy-duty hydraulic motor
• Pressure relief valve included
• Extreme-duty shaft locking system
• Compact gearbox design for increased drilling depth
• Top-mounted hose ports
• Swing control options available
• Halo alignment system available as an optional extra
• Australian Made
• 5 Year Gearbox Warranty
• 3 Year Motor Warranty
Specifications
| Specification | PD8HF |
|---|---|
| Recommended Flow | 80-200 LPM |
| Nominal Torque | 7136 Nm |
| Motor Type | 6K Geroler |
| Pressure Valve | Included |
| Energy Control Valve | Optional |
| Case Drain Required | Not Required |
| Maximum Pressure | 240 Bar |
| Maximum Flow | 230 LPM @ 130 Bar |
| Maximum Power | 50kW (67HP) |
| Overall Length | 950mm |
| Diameter | 290mm |
| Weight | 149kg |
| Output Shaft | 75mm Square |
| Swing Control | Optional |
| Diggalign | Optional |
| Halo | Optional |
| Recommended Auger Series | 6 Series |
| Maximum Auger Diameter Earth | 1200mm |
| Maximum Auger Diameter Clay/Shale | 1000mm |
Available Packages
Excavator Packages
PD8HF-5 – Drive Only
PD8HF-5-EM – Double Pin Hitch Package
PD8HF-5-EMC – Excavator Cradle Hitch Package
Frame Packages
PD8HF-5-FR – Side Shift Frame Package
PD8HF-5-FR-SCS – Swing Control Frame Package
Telehandler Packages
PD8HF-5-TH – Telehandler Frame Package
PD8HF-5-TH-SCS – Telehandler Swing Control Package
Two Speed Packages
PDT8HF-5 – Two Speed Drive Only
PDT8HF-5-EM – Two Speed Double Pin Hitch Package
PDT8HF-5-EMC – Two Speed Cradle Hitch Package
PDT8HF-5-TPE – Two Speed Telescopic Piling Extension Package
Package Includes
Single Speed Packages Include:
• Drive Unit
• Selected Hitch or Frame Package
• Linkage
• Hoses sold separately
Two Speed Packages Include:
• Drive Unit
• Selected Hitch or Frame Package
• Linkage
• Hydraulic Hoses
• Case drain required
Optional Extras
Halo Alignment System
Halo is available as an optional extra and assists operators with vertical alignment when drilling.
Halo includes:
• Halo LED Ring
• 3 metre extension cable
• In-cab cigarette lighter plug
Additional extension cables may be required.
Warranty & Support
• 5 Year Gearbox Warranty
• 3 Year Motor Warranty
• Local Parts Support
• Local Technical Support
• Australia-Wide Dealer Network
