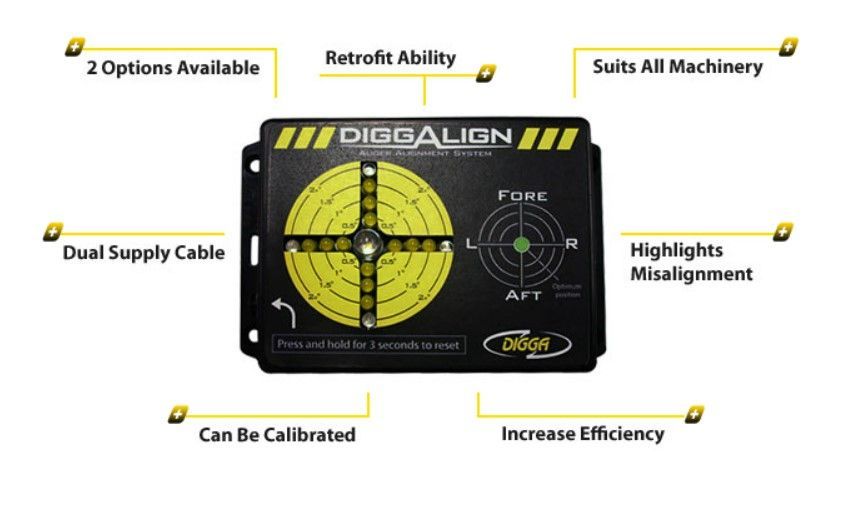

Digga Diggalign Inclinometer Retro Fit Kit DIY High Definition 15m Harness | Auger Drives & Screw Piling | $3,790 Inc GST
Precision Drilling & Screw Piling Alignment System
The Digga Diggalign Inclinometer was developed for contractors where accuracy is critical. Ideal for drilling, screw piling and core barrelling applications, the Diggalign system is designed to show the operator when the top of the pile, auger or drill string is off plumb and helps maintain accuracy throughout the installation process.
The Diggalign system improves drilling accuracy, reduces installation errors and increases productivity on site. Suitable for retrofitting to existing auger drives, the Diggalign system provides real-time alignment feedback to the operator, helping ensure piles and holes are installed correctly the first time.
The High Definition version provides 0.5° measurement increments and is recommended for drilling and piling applications exceeding 4 metres in depth where maximum accuracy is required.
Key Features & Benefits
- High definition accuracy with 0.5° increments
- Recommended for drilling and piling over 4m deep
- Suits all machinery types
- Can be retrofitted to existing auger drives
- Increases job site efficiency
- Real-time alignment monitoring
- Helps maintain drilling accuracy
- Highlights misalignment forward and aft
- Dual supply cable with both 12V and 24V compatibility
- Can be calibrated for angles up to 20°
- Suitable for drilling, screw piling and core barrelling applications
Standard vs High Definition
Standard Definition
- 2° measurement increments
- Recommended for piles and drilling under 4m depth
High Definition
- 0.5° measurement increments
- Recommended for piles and drilling over 4m depth
- Greater accuracy for precision installations
Suitability
Suitable for:
- Auger Drives
- Screw Piling Drives
- Anchor Drives
- Drilling Applications
- Core Barrelling
- Construction Contractors
- Civil Contractors
- Foundation Specialists
- Utility Contractors
Specifications
| Feature | Specification |
|---|---|
| Model | Diggalign Inclinometer |
| Definition | High Definition |
| Harness Length | 15m |
| Measurement Increment | 0.5° |
| Calibration Range | Up to 20° |
| Power Supply | 12V / 24V |
| Length | 120mm |
| Depth | 35mm |
| Overall Length | 146mm |
| Height | 93mm |
Package Includes
- Diggalign Inclinometer
- 15m Extension Harness
- Display Unit
- Cigarette Lighter Power Cord
- Suction Mount
- Installation Components
