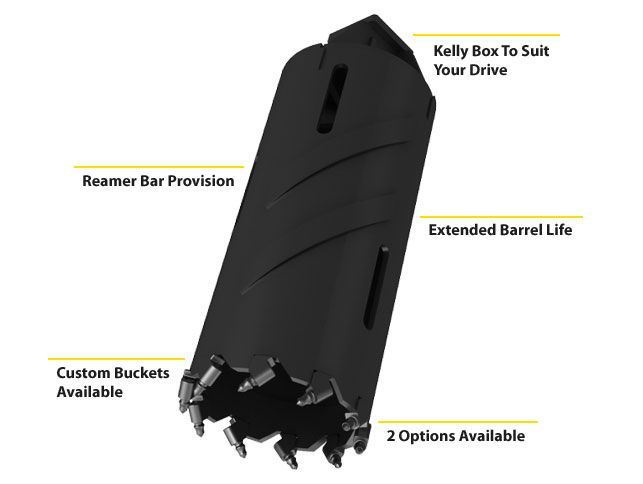

Digga Heavy Duty Core Barrel 400mm | 16–20 Ton Excavators | From $5,390 Inc GST
Australian Made Heavy Duty Core Barrel for Hard Rock Drilling Applications
The Digga Heavy Duty Core Barrel is designed for drilling applications where conventional augers become ineffective or when used in conjunction with tapered rock augers for extremely hard rock drilling conditions. The Core Barrel features a thin cutting edge designed to maximise penetration rates by reducing the amount of contact surface area that must be cut and removed during drilling.
Manufactured from high-grade steel and engineered specifically for demanding drilling environments, the Heavy Duty Core Barrel range is designed for 16–20 tonne excavators and features a 20mm wall thickness combined with 19mm rotating rock picks for maximum durability and performance.
Digga Core Barrels range from 400mm to 2100mm in diameter and are supplied with a Kelly Box (drive hub) to suit your machine.
Key Features & Benefits
- Australian made
- Designed for hard rock drilling applications
- Heavy duty 20mm wall thickness
- Suitable for 16–20 tonne excavators
- Thin cutting edge for increased penetration rates
- Provision for reamer bars
- Kelly Box supplied to suit machine
- Wear ribs extend barrel life
- Reduces barrel stalling
- 19mm rotating rock picks fitted as standard
- Custom bucket designs available
- Alternative tooth configurations available on request
Hard Rock Drilling Performance
The Digga Core Barrel is specifically designed for conditions where conventional augers struggle to maintain productivity. The thin cutting edge design improves penetration while the wear rib construction extends service life in abrasive drilling conditions.
Heavy Duty Construction
The Heavy Duty Core Barrel range is manufactured using high-grade steel with a 20mm wall thickness and reinforced construction to withstand the higher torque loads associated with larger excavators and more demanding drilling applications.
Suitability
Suitable for:
- 16–20 Ton Excavators
- Hard Rock Drilling
- Civil Construction
- Foundation Drilling
- Screw Piling
- Utility Installation
- Infrastructure Projects
- Mining & Quarry Applications
- Commercial Construction
Specifications
| Feature | Specification |
|---|---|
| Machine Suitability | 16–20 Ton Excavators |
| Wall Thickness | 20mm |
| Tooth Type | 19mm Rotating Rock Picks |
| Barrel Construction | Heavy Duty |
| Hub Options | 75mm, 100mm & 130mm Square |
| Reamer Bar Provision | Yes |
| Kelly Box Included | Yes |
Hub Options
| Hub Code | Description |
|---|---|
| 5 | 75mm Square |
| 7 | 100mm Square |
| 9 | 130mm Square |
Diameter Specifications
| Diameter | Overall Length |
|---|---|
| 400mm | 1500mm |
| 450mm | 1500mm |
| 500mm | 1500mm |
| 600mm | 1500mm |
| 750mm | 1500mm |
| 900mm | 1500mm |
| 1000mm | 1500mm |
| 1050mm | 900mm |
| 1200mm | 900mm |
| 1500mm | 900mm |
| 1800mm | 900mm |
| 2000mm | 900mm |
| 2100mm | 900mm |
Package Includes
- Digga Heavy Duty Core Barrel
- Heavy Duty Base Ring
- 19mm Rotating Rock Picks
- Kelly Box To Suit Machine
WHY CHOOSE HFP ATTACHMENTS
Most suppliers just import and move boxes — then you're on your own. HFP is different.
We don't just sell attachments. We build them, support them, repair them and stand behind them.
- Australian-made attachments manufactured by leading Australian manufacturers and backed locally
- Australian-made HFPA attachments designed and manufactured in-house in Kilsyth, Victoria
- Imported attachments backed by local parts and support
- Expert advice from purchase through to installation
- Workshop-based repairs and modifications available
- Local warranty support with real people you can contact
- Experienced team who understand fitment and real-world applications
Whether you choose Australian-made or imported equipment, you're dealing with a company that works with attachments every day — not just a reseller.
With HFP, you get the right attachment, correctly fitted and backed by local support.
SUPPORT & WARRANTY
All products are backed locally by HFP Attachments with access to parts, technical support, repairs and after-sales service.
Manufacturer's warranty applies.
Warranty claims are handled locally through HFP Attachments.
IMPORTANT INFORMATION
- Please advise machine make and model when ordering.
- Kelly Box will be supplied to suit your machine.
- Provision for reamer bars included.
- Custom bucket designs available on request.
- Alternative tooth options available on request.
- Images may not represent exact product supplied.
- Lead times and stock availability are subject to change based on incoming orders.
