Digga Mini High Volume 4 In 1 Bucket 1400mm | Sit In Machines | From $5,300 inc GST
The Digga Mini High Volume 4 In 1 Bucket 1400mm is designed for sit in mini loaders and small skid steer loaders requiring increased bucket capacity while retaining the versatility of a traditional 4 In 1 bucket. Combining bucket, grapple, scraper and dozer functionality into a single attachment, it is ideal for operators wanting improved material handling efficiency while reducing attachment changes across landscaping, construction and property maintenance applications.
Australian designed and manufactured, the Digga Mini High Volume 4 In 1 Bucket features a heavy-duty 12mm hardened steel floor, fully welded 4mm grill, rear-profiled grapple teeth and a unique rear channel design to maximise hose protection. The high-volume design provides greater material capacity than the standard bucket range, making it well suited to loading, site clean-up, bulk material handling and general earthmoving applications.
Suitable for contractors, landscapers, councils, hire companies, farmers and owner operators, the Digga Mini High Volume 4 In 1 Bucket is ideal for grading, scraping, grappling, loading, material spreading and general construction work.

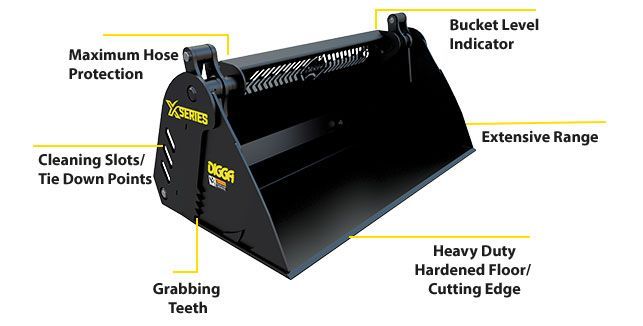

Key Features
- High volume bucket design for increased material capacity
- Heavy-duty 12mm hardened steel floor
- Fully welded one-piece 4mm grill / hungry board
- Grabbing teeth profiled on rear sides for improved grip
- Unique rear channel design for maximum hose protection
- Cleaning slots for easy removal of built-up material
- Bucket level indicator for improved operator accuracy
- Hydraulic hoses and couplers included
- Optional bolt-on cutting edge available
- Optional chisel and tiger tooth kits available
- Australian designed and manufactured
Suitability
Machine Suitability
- Sit In Mini Loaders
- Small Skid Steer Loaders
Industry Suitability
- Landscaping
- Civil Construction
- Property Maintenance
- Agriculture
- Councils
- Hire Companies
Application Suitability
- Grading
- Scraping
- Grappling
- Material Handling
- Material Spreading
- Site Clean Up
- General Construction
- Property Maintenance
Specifications Table
| Specification | Value |
|---|---|
| SKU | BUCKET-1400HV |
| Bucket Width | 1400mm |
| Bucket Type | High Volume Heavy Duty Flat Floor Bucket |
| Floor Thickness | 12mm |
| Weight | 182kg |
| Struck Volume | 0.17m³ |
| Heaped Volume | 0.21m³ |
| Recommended Teeth Quantity | 6 |
Package Includes
- Digga Mini High Volume 4 In 1 Bucket 1400mm
- Hydraulic Hoses
- Hydraulic Couplers
Please note quick connects to your machine are not included.
Why Choose HFP Attachments
Most suppliers just import and move boxes — then you're on your own. HFP is different.
We don't just sell attachments. We build them, support them, repair them and stand behind them.
- Australian-made attachments manufactured in-house
- Imported attachments backed by local parts and support
- Expert advice from purchase through to installation
- Workshop-based repairs and modifications available
- Local warranty support with real people you can contact
- Experienced team who understand fitment and real-world applications
Whether you choose Australian-made or imported equipment, you're dealing with a company that works with attachments every day — not just a reseller.
With HFP, you get the right attachment, correctly fitted and backed by local support.
Support & Warranty
All products are backed locally by HFP Attachments with access to parts, technical support, repairs and after-sales service.
Manufacturer's warranty applies.
Warranty claims are handled locally through HFP Attachments. In the event of a warranty issue, you deal directly with our Australian team rather than being required to return products overseas for assessment or repair.
Our goal is to minimise downtime and provide practical solutions as quickly as possible.
Important Information
Machine Make, Machine Model and Pickup Specifications must be supplied prior to ordering.
Product images are for illustrative purposes only.
Machine specifications should always be confirmed prior to ordering to ensure correct fitment and compatibility.
