Digga Road Profiler – POA | Asphalt, Concrete & Rock Milling Attachments

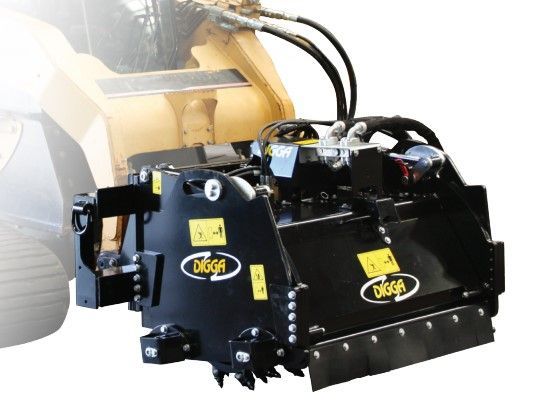

Digga Road Profiler
POA – Contact Us For A Quote.
The Digga Road Profiler range is designed for contractors, civil construction companies, councils, utility providers, road maintenance contractors, infrastructure projects, and government departments requiring accurate milling and profiling of asphalt, concrete, and rock surfaces.
Available in both standard flow and high flow configurations, Digga Road Profilers provide precise depth control, excellent visibility, and exceptional productivity for road repairs, trench reinstatement, utility works, pavement maintenance, and surface preparation.
Featuring Digga's proven planetary drive system, electro-hydraulic controls, self-levelling depth adjustment, and integrated water suppression capability, these units deliver reliable performance in demanding commercial environments.
Available in Standard Flow and High Flow configurations. Contact our team for model selection, pricing, and application advice.
Backed locally by ST Engineering and HFP Attachments for expert advice, fitment support, parts, and after-sales service.
Key Features & Benefits
• Suitable for asphalt, concrete, and rock milling
• Available in standard flow and high flow models
• Electro-hydraulic joystick controls
• Independent self-levelling depth adjustment system
• Precision lapping and taper cuts
• Optional side-shift functionality
• Water suppression nozzle kit included
• Optional water tank kits available
• Digga planetary drive system
• Heavy-duty commercial construction
• Suitable for contractors, councils, and government departments
• Built for Australian conditions
Suitable Applications
Ideal for:
• Asphalt repairs
• Concrete milling
• Road maintenance
• Utility trench reinstatement
• Surface preparation
• Civil construction
• Infrastructure projects
• Local government maintenance works
• Pavement rehabilitation
• Road widening and modifications
Functional Overview
The Digga Road Profiler range is engineered to accurately remove asphalt, concrete, and rock surfaces while maintaining consistent depth and cutting performance.
Independent self-levelling depth adjustment plates allow operators to achieve accurate lapping cuts and taper cuts, while the electro-hydraulic joystick enables convenient control of depth, tilt, and optional side-shift functions directly from the cab.
The integrated water suppression nozzle kit assists with dust control during operation, while optional water tank systems are available for applications requiring increased dust suppression capacity.
The high-torque Digga planetary drive system delivers reliable cutting performance and extended service life in demanding commercial applications.
Design & Construction
Electro-Hydraulic Control System
Convenient in-cab joystick control for depth, tilt, and optional side-shift functions.
Independent Self-Levelling Depth Control
Designed to provide accurate cutting depth and improved finish quality.
Digga Planetary Drive
High-torque planetary drive system engineered for commercial milling applications.
Water Suppression System
Water nozzle kit included as standard to assist with dust suppression.
Heavy-Duty Drum Assembly
Built for demanding asphalt, concrete, and rock milling applications.
Available Models
| Model | Machine Requirement | Planing Width |
|---|---|---|
| SP300 | Standard Flow | 305mm |
| HP450 | High Flow | 457mm |
| HP600 | High Flow | 610mm |
| HP1000* | High Flow | 1000mm |
*HP1000 available on extended lead times.
Specifications
| Feature | SP300 | HP450 | HP600 | HP1000 |
|---|---|---|---|---|
| Operating Pressure | 170-240 Bar | 170-240 Bar | 170-240 Bar | 170-240 Bar |
| Hydraulic Flow | 45-84 L/min | 83-166 L/min | 83-166 L/min | 136-166 L/min |
| Planing Width | 305mm | 457mm | 610mm | 1000mm |
| Planing Depth | 0-127mm | 0-127mm | 0-127mm | 0-127mm |
| Drum Diameter | 482mm | 560mm | 560mm | 560mm |
| Weight | 680kg | 997kg | 1088kg | 1406kg |
| Number of Picks | 37 | 45 | 57 | 89 |
| Tilt | 11° | 8° | 8° | 8° |
Please contact our team for assistance selecting the correct model for your machine and application.
Package Includes
• Digga Road Profiler
• Electro-hydraulic joystick controller
• Water suppression nozzle kit
• Standard mounting configuration
Optional extras available:
• Water tank kits
• Side-shift functionality
• Additional pick configurations
Important Information
To ensure correct fitment and operation, please provide:
• Machine make
• Machine model
• Hydraulic flow
• Hydraulic pressure
• Mounting type
This attachment is configured to suit your machine setup.
Final configuration and fitment are based on the specifications supplied by the customer.
Machines fitted with quick hitches may require additional clearance considerations depending on hitch design and geometry.
Product images are for illustrative purposes only.
Colour, decals, hydraulic hose routing, and minor design features may vary between production runs and ongoing product improvements.
Machine specifications should always be confirmed prior to ordering to ensure correct fitment and hydraulic compatibility.
Freight & Delivery
Delivery is typically arranged to:
• Your nearest freight depot, or
• A commercial business with forklift facilities
Residential and farm delivery options are also available.
Please note any property with a house is classified as residential by freight carriers and may incur additional delivery charges.
Contact us with your suburb and postcode for an accurate freight quote.
Pickup is also available from our Kilsyth facility.
Support & Warranty
All attachments are backed locally with access to parts, technical support, and after-sales service.
• 12-Month Manufacturer's Warranty except where warranty indicates longer
