Digga X-Series Heavy Duty 4 In 1 Bucket 2040mm | From $7,725 inc GST | Large Platform Skid Steer Loaders

The Digga X-Series Heavy Duty 4 In 1 Bucket 2040mm is engineered for large platform skid steer loaders requiring a premium Australian-made attachment for construction, civil works, agriculture, landscaping, material handling and site clean-up applications.

Following a complete redesign, the Digga X-Series range delivers increased strength, improved serviceability, greater bucket opening width and enhanced clamping performance. Combining the functionality of a bucket, grapple, dozer blade and scraper into a single attachment, the X-Series reduces attachment changes while improving productivity on site.

Built using high-quality Australian steel and premium components, the X-Series is designed for demanding commercial applications where reliability and performance matter.

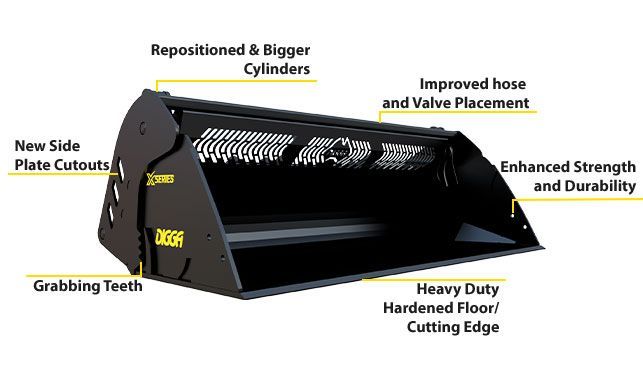

Key Features

• Australian designed and manufactured

• Heavy duty 20mm floor construction

• Functions as a bucket, grapple, dozer blade and scraper

• Repositioned cylinders for improved opening width and clamping force

• Increased cylinder size for improved material control

• Improved hydraulic hose and valve placement

• Counter-sunk grease nipples on all pivot pins

• Side plate cut-outs provide maintenance access and tie-down points

• Upgraded clevis design for increased strength and durability

• Integrated clear view guard for improved visibility and productivity

• Hydraulic hoses and couplers included

• Lock valve included

• Optional ESCO tooth packages available

• Optional bolt-on cutting edges available

• Built for Australian conditions

Suitability

Suitable for:

• Large platform skid steer loaders 90HP+

• Construction contractors

• Civil contractors

• Agricultural operators

• Landscaping contractors

• Property maintenance contractors

• Material handling applications

• Site clean-up applications

• General earthmoving

Specifications

Feature	Specification
SKU	BUCKET-XH-2040
Bucket Width	2040mm
Bucket Type	X-Series Heavy Duty 4 In 1 Bucket
Floor Thickness	20mm
Side Plate Thickness	12mm
Weight	618kg
ISO Struck Volume	0.372m³
ISO Heaped Volume	0.531m³
Lock Valve	Included
Hydraulic Hoses	Included
Hydraulic Couplers	Included
Machine Suitability	Large Platform Skid Steer Loaders 90HP+

Package Includes

• Digga X-Series Heavy Duty 4 In 1 Bucket 2040mm

• Lock valve

• Hydraulic hoses

• Hydraulic couplers

Please note quick connects to your machine are not included.

Why Choose HFP Attachments

Most suppliers just import and move boxes — then you're on your own. HFP is different.

We don't just sell attachments. We build them, support them, repair them and stand behind them.

• Australian-made attachments manufactured in-house
• Imported attachments backed by local parts and support
• Expert advice from purchase through to installation
• Workshop-based repairs and modifications available
• Local warranty support with real people you can contact
• Experienced team who understand fitment and real-world applications

Whether you choose Australian-made or imported equipment, you're dealing with a company that works with attachments every day — not just a reseller.

With HFP, you get the right attachment, correctly fitted and backed by local support.

Support & Warranty

All products are backed locally by HFP Attachments with access to parts, technical support, repairs and after-sales service.

Manufacturer's warranty applies.

Warranty claims are handled locally through HFP Attachments. In the event of a warranty issue, you deal directly with our Australian team rather than being required to return products overseas for assessment or repair.

Our goal is to minimise downtime and provide practical solutions as quickly as possible.

Important Information

Optional teeth and cutting edges must be ordered at the time of bucket purchase.

Cutting edges cannot be retro-fitted after manufacture.

Bolt-on cutting edges are available for:

• Front cutting edge only

• Front, dozer and rear cutting edges

JCB skid steer loaders must be fitted with a counter balance valve to eliminate hydraulic shudder.

Please note quick connects to your machine are not included.

Product images are for illustrative purposes only.

Machine specifications should always be confirmed prior to ordering to ensure correct fitment and compatibility.

Freight & Delivery

Delivery is typically arranged to:

Your nearest freight depot, or

A commercial business with forklift facilities

Please note any property with a house is classified as residential by freight carriers and may incur additional delivery charges. Contact us with your suburb and postcode for an accurate freight quote.

Contact & Orders

Phone 03 9762 6483

Email sales@stengineering.com.au

Order Online: Available via our website checkout
