HFP Hydraulic Rotating Demolition Grapple | 4.5–6.5 Tonne Excavators | 45mm Pins

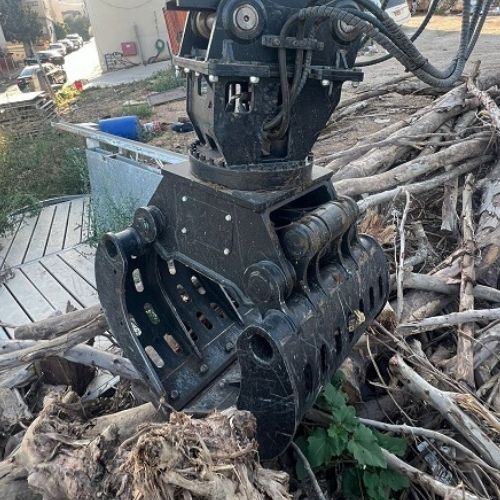

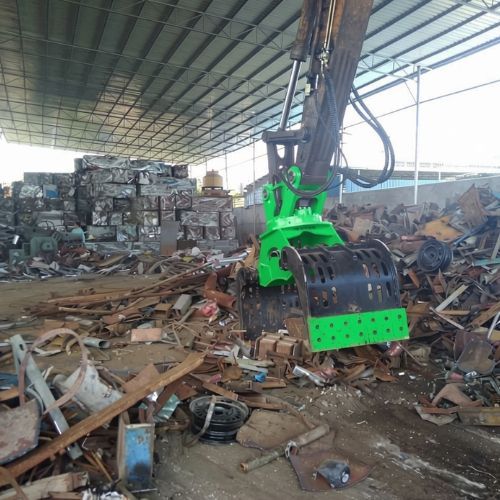

360° Hydraulic Rotating Demolition Grapple

The HFP Hydraulic Rotating Demolition Grapple is a heavy-duty attachment designed for 4.5–6.5 tonne excavators running 45mm pins, combining powerful material handling with continuous 360° hydraulic rotation.

Designed for demolition, sorting, recycling, timber handling, rock handling and general material handling applications, the grapple allows the operator to rotate and position material precisely without continually repositioning the excavator.

With a maximum opening of 1400mm and 500mm grab width, the grapple provides excellent handling capacity while the hydraulic rotation system provides greater control when sorting, loading, positioning and handling irregular materials.

Built for demanding commercial use and supplied with hydraulic hoses and fittings, the grapple is backed locally by HFP Attachments with machine fitment advice, parts, repairs and ongoing technical support.

Key Features

• Suits 4.5–6.5 tonne excavators
• 45mm pin configuration
• Continuous 360° hydraulic rotation
• Large 1400mm maximum opening
• 500mm grab width
• Hydraulic grapple opening and closing
• Independent hydraulic requirements for rotation and grapple operation
• Heavy-duty construction for demanding commercial applications
• Suitable for demolition, sorting, recycling and material handling
• Supplied with hoses and fittings
• Machine-specific pickup configuration
• Backed locally by HFP Attachments with parts, repairs and technical support

Specifications

Package Includes

• HFP Hydraulic Rotating Demolition Grapple
• Hydraulic hoses and fittings
• Machine-specific pickup to suit supplied machine dimensions

Machine-side quick connects are not included.

Fitment & Machine Compatibility

This grapple is designed for 4.5–6.5 tonne excavators running 45mm pins and is supplied with a pickup configured to suit the parent machine.

Excavator tonnage is a guide only. Due to variations between machine makes and models, correct fitment must be confirmed against the individual excavator.

To ensure correct fitment, please provide:

• Machine make
• Machine model
• Pin diameter
• Pin centre-to-centre measurement
• Width between ears

Machine specifications should be confirmed prior to ordering to ensure correct physical fitment and hydraulic compatibility.

Hydraulic Requirements

The grapple requires hydraulic supply for both the 360° rotation function and grapple opening and closing functions.

Rotation:

• Oil flow: 30–55 L/min
• Operating pressure: 110–120 Bar

Grapple Cylinder:

• Oil flow: 20–40 L/min
• Operating pressure: 160–200 Bar

Machine hydraulic specifications should be checked prior to ordering.

Suitable Applications

• Demolition
• Material sorting
• Construction and demolition waste handling
• Recycling
• Rock and rubble handling
• Timber and log handling
• Scrap handling
• Site clean-up
• Landscaping
• Civil construction
• General material handling

Commercial & Trade Enquiries

OEM Machinery Dealers | Equipment Dealers | Hire Fleets | Civil Contractors | Local Councils | Government Fleets

HFP Attachments supplies excavator grapples and attachment packages for OEM machinery dealers, equipment dealers, hire fleets, civil contractors, councils and government fleets throughout Australia.

We can assist with:

• Dealer and volume pricing
• Multi-unit and fleet supply
• Machine-specific pickup configurations
• Standardised attachment packages across machinery fleets
• Custom colours and branding for OEM, dealer and fleet requirements
• Technical fitment support

For OEM, dealer, fleet or volume enquiries, contact our team on 03 9762 6483 or sales@stengineering.com.au to discuss your requirements.

Important Information

Final pickup configuration and fitment are based on the machine specifications supplied at the time of order.

Product images are for illustrative purposes only.

Custom colours are available on request to suit OEM dealers, machinery fleets, councils, government, utilities, contractors and corporate requirements.

Colour, decals, hydraulic hose routing and minor design features may vary between production runs as part of ongoing product development.

Machine specifications should always be confirmed prior to ordering to ensure correct fitment and hydraulic compatibility.

Why Choose HFP Attachments

Most suppliers just import and move boxes — then you're on your own. HFP is different.

We don't just sell attachments. We build them, support them, repair them and stand behind them.

• Australian-made attachments manufactured in-house
• Imported attachments backed by local parts and support
• Expert advice from purchase through to installation
• Workshop-based repairs and modifications available
• Local warranty support with real people you can contact
• Experienced team who understand fitment and real-world applications

Whether you choose Australian-made or imported equipment, you're dealing with a company that works with attachments every day — not just a reseller.

With HFP, you get the right attachment, correctly fitted and backed by local support.

Support & Warranty

All products are backed locally by HFP Attachments with access to parts, technical support, repairs and after-sales service.

Warranty claims are handled directly through HFP Attachments, providing a straightforward and efficient warranty process.

Our goal is to minimise downtime and provide practical solutions as quickly as possible.

Freight & Delivery

Standard website shipping is to the nearest freight depot or a commercial business with forklift facilities.

Residential and farm deliveries are also available; however, freight companies classify any property with a house as a residential delivery and charges are higher.

Please contact us for a freight quote if you require residential delivery.

Pickup is available from our factory in Kilsyth with 2–3 business days' notice.
