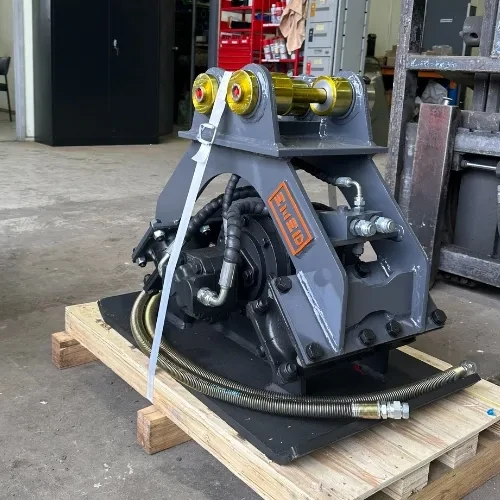

HFP Hydraulic Vibratory Plate Compactor | 10–16 Ton Excavators
The HFP Hydraulic Vibratory Plate Compactor is engineered for contractors, civil works, road construction, utility installations, trenching, subdivision projects and large-scale earthmoving applications requiring powerful and reliable compaction performance.
Designed to suit 10–16 tonne excavators, this heavy-duty hydraulic compactor delivers exceptional compaction force while maintaining reliability and durability in demanding Australian conditions.
Manufactured using high-strength Q345 manganese steel and a 42CrMo alloy steel pin with integrated oil passage, the HFP Hydraulic Compactor is built to withstand continuous commercial use. Featuring a USA-imported hydraulic vibration motor, German FAG bearings and Korean Autox shock absorbers, this unit delivers powerful vibration performance, low-noise operation and extended service life.
Ideal for roadworks, trench compaction, embankments, utility installations, foundations, site preparation and large-scale earthmoving projects.
Supplied complete with mounting head, hoses and fittings.
Quick connects to your machine are not included.
Key Features
- Suits 10–16 tonne excavators
- Heavy-duty Q345 manganese steel construction
- Powerful 10 ton impulse force
- Maximum vibration frequency of 1800 r/min
- USA-imported hydraulic vibration motor
- German FAG bearings for smooth and reliable operation
- Korean Autox shock absorber system
- 42CrMo alloy steel pin with integrated oil passage
- Designed for demanding commercial applications
- Suitable for trenching, roadworks and civil construction
- Backed locally with technical support and after-sales service
Suitability
Industry Suitability
- Civil Construction
- Earthmoving Contractors
- Utility Contractors
- Road Construction
- Pipeline Contractors
- Drainage Contractors
- Councils
- Infrastructure Projects
- Hire Companies
- Agricultural Operations
Application Suitability
- Trench Compaction
- Foundation Preparation
- Utility Installations
- Roadworks
- Embankment Construction
- Site Preparation
- Subdivision Works
- Pipeline Installation
- General Earthworks
- Backfill Compaction
Specifications
| Feature | Specification |
|---|---|
| Machine Size | 10–16 Ton Excavators |
| Power of Impulse | 10 Tons |
| Maximum Vibration Frequency | 1800 r/min |
| Working Flow | 85–105 L/min |
| Working Pressure | 100–130 Bar |
| Weight | 500kg |
| Bottom Plate Dimensions | 862mm x 700mm |
| Height | 920mm |
| Width | 700mm |
| Material | Q345 Manganese Plate Steel |
| Pin Material | 42CrMo Alloy Steel |
| Bearings | German FAG Bearings |
| Shock Absorbers | Korean Autox |
| Motor | USA Imported Hydraulic Vibration Motor |
Package Includes
- HFP Hydraulic Vibratory Plate Compactor
- Mounting Head
- Hydraulic Hoses
- Hydraulic Fittings
Quick connects to your machine are not included.
Why Choose HFP Attachments
Most suppliers just import and move boxes — then you're on your own. HFP is different.
We don't just sell attachments. We build them, support them, repair them and stand behind them.
- Australian-made attachments manufactured in-house
- Imported attachments backed by local parts and support
- Expert advice from purchase through to installation
- Workshop-based repairs and modifications available
- Local warranty support with real people you can contact
- Experienced team who understand fitment and real-world applications
Whether you choose Australian-made or imported equipment, you're dealing with a company that works with attachments every day — not just a reseller.
With HFP, you get the right attachment, correctly fitted and backed by local support.
Support & Warranty
All products are backed locally by HFP Attachments with access to parts, technical support, repairs and after-sales service.
Manufacturer's warranty applies.
Warranty claims are handled locally through HFP Attachments. In the event of a warranty issue, you deal directly with our Australian team rather than being required to return products overseas for assessment or repair.
Our goal is to minimise downtime and provide practical solutions as quickly as possible.
Important Information
Please provide your machine make, model and pickup specifications when ordering.
Quick connects to your machine are not included.
Product images are for illustrative purposes only.
Specifications and design may vary as part of ongoing product improvements.
Machine fitment should always be confirmed prior to ordering.
Freight & Delivery
Delivery is typically arranged to:
- Your nearest freight depot, or
- A commercial business with forklift facilities
Please note any property with a house is classified as residential by freight carriers and may incur additional delivery charges.
Contact us with your suburb and postcode for an accurate freight quote.
