HFP Premium Rotating Hydraulic Grapple | 8–10 Ton Excavators | 55mm Pins | $10,790 Inc GST

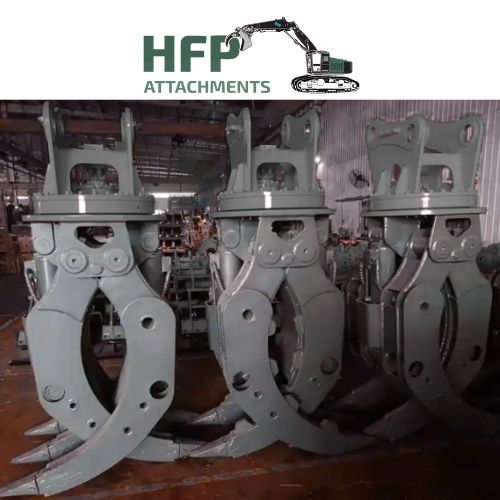

Premium Rotating Hydraulic Grapple for 8–10 Ton Excavators
$10,790 including GST.
The HFP Premium Rotating Hydraulic Grapple is engineered for 8–10 tonne excavators running 55mm pin configurations, delivering precise and controlled material handling performance across demolition, scrap handling, timber work, rock placement, waste handling and bulk material movement applications.
Designed for demanding Australian operating conditions, this premium rotating grapple features continuous 360° hydraulic rotation, allowing operators to accurately position and handle awkward materials while improving productivity, control and operational safety.
Suitable for contractors, hire fleets, councils, infrastructure projects, OEM supply programs, demolition contractors and government operators requiring dependable rotating attachment performance with local support and correct machine fitment.
Each grapple is configured to suit your machine pickup to ensure proper geometry, reliable operation and long service life.
Backed locally with parts, technical support and after-sales service.
Fitment & Attachment Class Information
Excavator tonnage is a guide only.
Attachment build class, compatibility and pricing are determined by the machine's pickup configuration, including:
- Pin diameter
- Pin centres
- Width between ears
- Quick hitch configuration
Machines with larger pin sizes require heavier-duty attachment construction with increased material thickness and reinforcement, even where machine tonnage may overlap other classes.
This ensures correct fitment, structural integrity, durability and long-term performance.
Some machines may vary from standard specifications depending on hitch setup and manufacturer configuration.
Key Features & Benefits
- Suits 8–10 tonne excavators
- Suits 55mm pin configurations
- Continuous 360° hydraulic rotation
- Heavy-duty rotating grapple design
- Swiss-manufactured hydraulic rotary motor
- Integrated hydraulic braking system
- Wear-resistant NM400 steel construction
- 42CrMo alloy steel pins with oil passages
- Heavy-duty hydraulic cylinders with Hallite seals
- Manganese-molybdenum wear teeth
- Excellent visibility and material control
- Designed for Australian conditions
- Backed locally with parts, technical support and after-sales service
Suitable Applications
Ideal for:
- Demolition
- Scrap handling
- Timber handling
- Rock placement
- Waste handling
- Land clearing
- Civil construction
- Bulk material movement
Functional Overview
Rotating hydraulic grapples provide controlled gripping and continuous rotational positioning for accurate handling of awkward and irregular materials.
The integrated 360° hydraulic rotation system allows operators to:
- Position materials more accurately
- Improve handling efficiency
- Reduce repositioning time
- Improve safety during handling operations
- Increase productivity in confined or technical environments
Designed for demanding commercial applications, these grapples deliver smooth and reliable rotation performance while maintaining excellent gripping strength and operator control.
Design & Construction
Continuous 360° Hydraulic Rotation
Integrated Swiss-manufactured rotary motor delivers smooth continuous rotation with integrated hydraulic braking for improved control and positioning accuracy.
Heavy-Duty Grapple Structure
Wear-resistant NM400 steel construction engineered for high abrasion resistance and long-term structural durability.
Heavy-Duty Hydraulic Cylinders
Honed cylinder tubes fitted with Hallite seals for reliable performance and extended service life.
42CrMo Alloy Steel Pins
High-strength pins with integrated oil passages designed for demanding commercial applications.
Manganese-Molybdenum Wear Teeth
Engineered for handling abrasive materials and repeated high-cycle operation.
Specifications
| Feature | Specification |
|---|---|
| Excavator Suitability | 8–10 Ton |
| Pin Size | 55mm |
| Grapple Type | Rotating Hydraulic Grapple |
| Rotation | Continuous 360° Hydraulic Rotation |
| Operating Weight | 440kg |
| Jaw Opening | 1400mm |
| Working Pressure | 120–160 Bar |
| Setup Pressure | 180 Bar |
| Required Flow | 50–100 L/min |
| Cylinder Capacity | 4.5 × 2 Ton |
| Construction | NM400 Wear-Resistant Steel |
Specifications are indicative only and may vary depending on configuration and machine requirements.
Please contact our team to confirm specifications for your application.
Package Includes
- Rotating hydraulic grapple assembly
- Custom pickup to suit your machine
- Pins
- Hydraulic connections
Machine-side quick connects are not included.
Important Information
To ensure correct fitment and operation, please provide:
- Machine make
- Machine model
- Pin diameter
- Pin centre to pin centre
- Width between ears
- Quick hitch type
- Auxiliary hydraulic flow and pressure specifications
This attachment is custom-configured to suit your excavator based on the specifications supplied at the time of order.
Product images are for illustrative purposes only.
Custom colours are available on request to suit fleet, council, government, utility, contractor and corporate requirements.
Colour, decals, hydraulic hose routing and minor design features may vary between production runs and ongoing product improvements.
Machine specifications should always be confirmed prior to ordering to ensure correct fitment and hydraulic compatibility.
Suitability
Suitable for a wide range of excavator brands including:
CAT, Kubota, Takeuchi, Yanmar, Kobelco, Hitachi, Komatsu, Hyundai, JCB, Volvo, Case, Doosan, Develon, Airman, SANY, XCMG and many more.
WHY CHOOSE HFP ATTACHMENTS
Most suppliers just import and move boxes — then you're on your own. HFP is different.
We don't just sell attachments. We build them, support them, repair them and stand behind them.
- Australian-made attachments manufactured in-house
- Imported attachments backed by local parts and support
- Expert advice from purchase through to installation
- Workshop-based repairs and modifications available
- Local warranty support with real people you can contact
- Experienced team who understand fitment and real-world applications
Whether you choose Australian-made or imported equipment, you're dealing with a company that works with attachments every day — not just a reseller.
With HFP, you get the right attachment, correctly fitted and backed by local support.
SUPPORT & WARRANTY
All products are backed locally by HFP Attachments with access to parts, technical support, repairs and after-sales service.
Manufacturer's warranty applies.
Warranty claims are handled directly through HFP Attachments, providing a straightforward and efficient warranty process.
Our goal is to minimise downtime and provide practical solutions as quickly as possible.
