HFP Triple Locking Hydraulic Multi Quick Hitch | 80mm Pins | 15–27 Tonne Excavators

Engineered for Safe and Reliable Attachment Changes

The HFP Triple Locking Hydraulic Multi Quick Hitch is designed for safe, reliable and efficient attachment changes on 15–27 tonne excavators running 80mm pins.

Featuring a triple locking hydraulic safety system, the hitch automatically secures both the front and rear attachment pins and allows compatible attachments to be changed hydraulically from the operator's cab without requiring a manual safety pin.

The locking system is designed to maintain secure attachment retention during operation and retain the attachment in the event of hydraulic pressure loss.

Engineered for conformity with AS 13031 / ISO 13031 excavator quick hitch safety requirements, the HFP Hydraulic Multi Quick Hitch combines efficient hydraulic operation with a safety-focused locking system for demanding commercial applications.

Backed locally by HFP Attachments with machine fitment advice, installation services, parts, repairs and ongoing technical support.

Australian Standards Conformity

The HFP Triple Locking Hydraulic Multi Quick Hitch is designed and supplied for conformity with the applicable Australian requirements for excavator quick hitches, including:

• AS 13031 – Earth-moving machinery – Quick couplers – Safety
• ISO 13031 – Earth-moving machinery – Quick couplers – Safety

The hydraulic locking and safety system is designed to provide secure attachment retention without requiring the operator to manually install a secondary safety pin during normal attachment changes.

Correct machine fitment and installation are essential to maintaining safe operation and conformity.

Product Demonstration

See the triple locking system in operation, including front and rear pin engagement during the attachment change sequence.

Key Features

• Suits 15–27 tonne excavators
• 80mm pin configuration
• AS 13031 / ISO 13031 conformity
• Hydraulic attachment changes from the operator's cab
• Triple locking hydraulic safety system
• Automatically secures both front and rear attachment pins
• Designed to maintain attachment retention in the event of hydraulic pressure loss
• No manual safety pin required
• Pin centre range from 425mm to 485mm
• Arm width range from 305mm to 340mm
• Heavy-duty construction for demanding commercial applications
• Suitable for contractors, hire fleets, councils, government and OEM machinery applications
• Backed locally by HFP Attachments with parts, repairs and technical support

Specifications

Package Includes

• HFP Triple Locking Hydraulic Multi Quick Hitch
• Complete installation kit

Machine-side quick connects are not included.

Workshop fitment is available by prior arrangement at an additional charge.

Fitment & Machine Compatibility

The HFP Triple Locking Hydraulic Multi Quick Hitch is designed to suit excavators running 80mm pins, with:

• Pin centres from 425mm to 485mm
• Arm width from 305mm to 340mm

Excavator tonnage is a guide only. Due to variations between machine makes and models, not every excavator running 80mm pins will fall within these dimensions.

To ensure correct fitment, please provide:

• Machine make
• Machine model
• Pin diameter
• Pin centre-to-centre measurement
• Width between ears

Machine specifications can be confirmed prior to supply to ensure the correct hitch is selected and configured.

Safety & Locking System

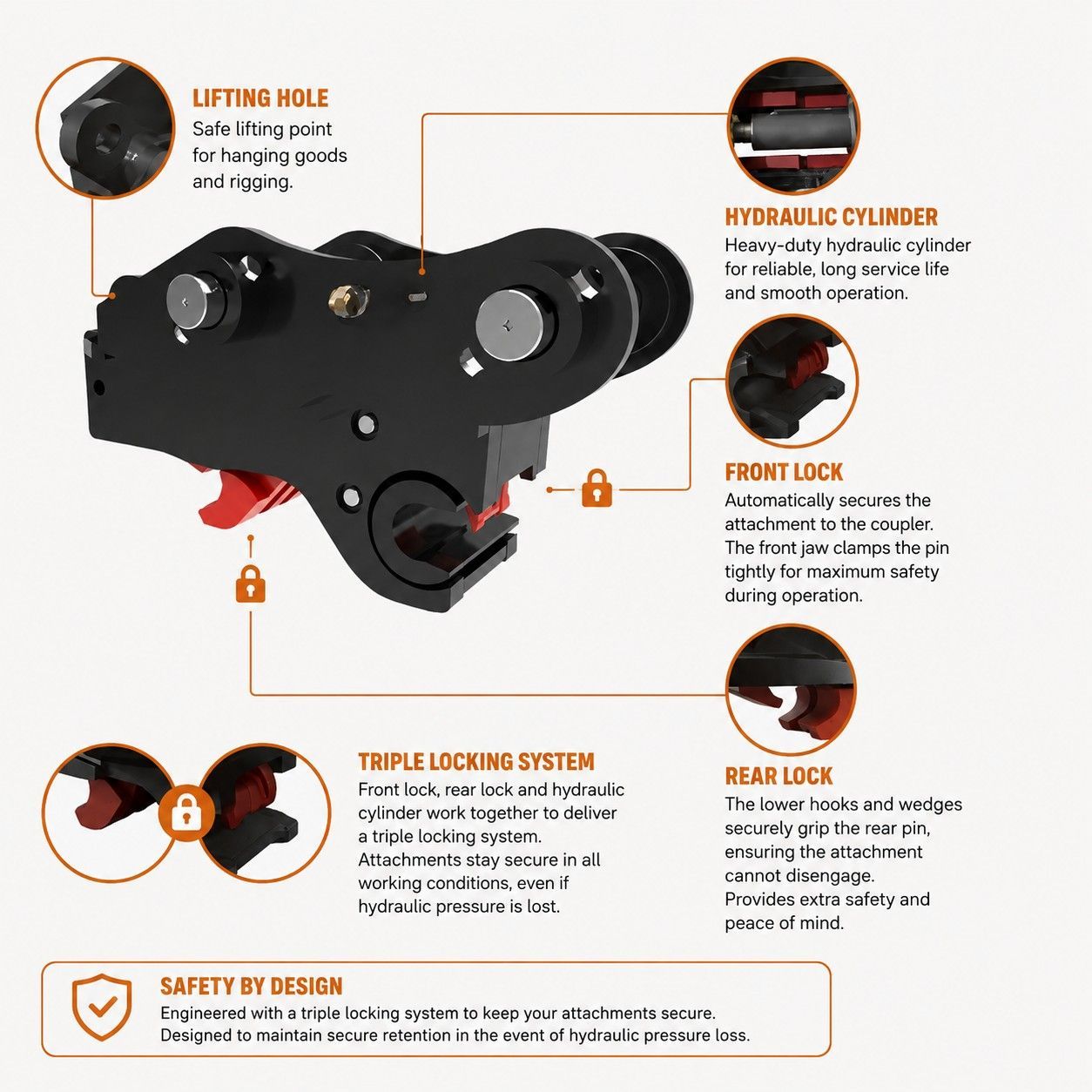

The HFP Triple Locking Hydraulic Multi Quick Hitch incorporates a triple locking hydraulic safety system designed to maintain secure engagement of the attachment during operation.

The system automatically secures both the front and rear attachment pins and is designed to retain the attachment in the event of hydraulic pressure loss.

This allows attachment changes to be completed hydraulically from the operator's cab without requiring the operator to manually install or remove a secondary safety pin.

The hitch is designed and supplied for conformity with AS 13031 / ISO 13031 requirements for excavator quick couplers when correctly fitted, installed, operated and maintained.

Suitable Applications

• Civil construction
• Earthmoving
• Infrastructure projects
• Roadworks
• Drainage and utilities
• Demolition
• General excavation
• Civil contractors
• Hire fleets
• Local councils
• Government fleets
• OEM machinery dealers

Commercial & Trade Enquiries

OEM Machinery Dealers | Equipment Dealers | Hire Fleets | Civil Contractors | Local Councils | Government Fleets

HFP Attachments supplies hydraulic quick hitches and attachment packages for OEM machinery dealers, equipment dealers, hire fleets, civil contractors, councils and government fleets throughout Australia.

We can assist with:

• Dealer and volume pricing
• Multi-unit and fleet supply
• Machine-specific hitch configuration
• Standardised attachment packages across machinery fleets
• Custom colours and branding for OEM, dealer and fleet requirements
• Technical fitment support
• Workshop installation and commissioning by prior arrangement

For OEM, dealer, fleet or volume enquiries, contact our team on 03 9762 6483 or sales@stengineering.com.au to discuss your requirements.

Important Information

Final configuration and fitment are based on the machine specifications supplied at the time of order.

Product images are for illustrative purposes only.

Custom colours are available on request to suit OEM dealers, machinery fleets, councils, government, utilities, contractors and corporate requirements.

Colour, decals, hydraulic hose routing and minor design features may vary between production runs as part of ongoing product development.

Machine specifications should always be confirmed prior to ordering to ensure correct fitment.

Why Choose HFP Attachments

Most suppliers just import and move boxes — then you're on your own. HFP is different.

We don't just sell attachments. We build them, support them, repair them and stand behind them.

• Australian-made attachments manufactured in-house
• Imported attachments backed by local parts and support
• Expert advice from purchase through to installation
• Workshop-based repairs and modifications available
• Local warranty support with real people you can contact
• Experienced team who understand fitment and real-world applications

Whether you choose Australian-made or imported equipment, you're dealing with a company that works with attachments every day — not just a reseller.

With HFP, you get the right attachment, correctly fitted and backed by local support.

Support & Warranty

All products are backed locally by HFP Attachments with access to parts, technical support, repairs and after-sales service.

Warranty claims are handled directly through HFP Attachments, providing a straightforward and efficient warranty process.

Our goal is to minimise downtime and provide practical solutions as quickly as possible.

Freight & Delivery

Standard website shipping is to the nearest freight depot or a commercial business with forklift facilities.

Residential and farm deliveries are also available; however, freight companies classify any property with a house as a residential delivery and charges are higher.

Please contact us for a freight quote if you require residential delivery.

Pickup is available from our factory in Kilsyth with 2–3 business days' notice.
