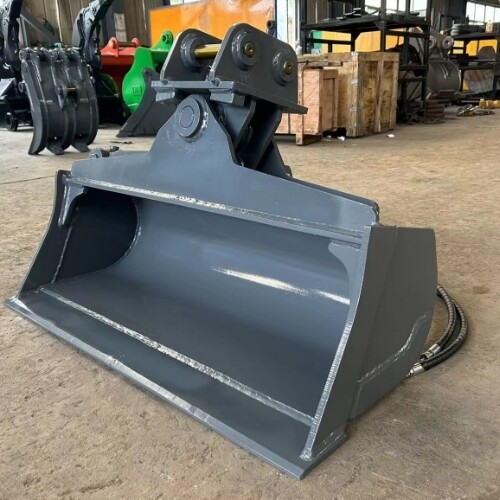

Heavy Duty Tilting Mud Bucket 750mm – $2,290 inc GST | 0.5 to 1.5 Ton Excavators with 25mm Pins
Precision Grading, Levelling & Finishing for Mini Excavators
The HFP Heavy Duty Tilting Mud Bucket 750mm is engineered for 0.5 to 1.5 ton excavators running 25mm pin pickups, providing exceptional precision and versatility for grading, levelling, trimming, and finishing tasks. Also known as Tilt Buckets, Levelling Buckets, Trimming Buckets, or Finishing Buckets, this attachment streamlines a wide range of earthmoving operations while enhancing efficiency and control.
Featuring a full 45-degree tilt in either direction, operators can handle challenging angles and contours with ease. Built for durability, the bucket comes equipped with wear parts, hoses, couplers, and mounting pins, ensuring it is ready to work straight away.
Key Features
Full 45-degree tilt left and right to maximise reach and manoeuvrability for precise grading
Heavy-duty single ram design provides smooth, reliable tilting performance
Push-pull configuration for balanced performance throughout the tilting range
Ram protector shields the hydraulic ram from damage, prolonging service life
Material shroud prevents spillage over the top of the bucket, protecting the ram and hoses
Flat bottom design allows precise grading and levelling
Ready-to-work package includes wear parts, hoses, couplers, and pins for direct mounting
Designed for 0.5 to 1.5 tonne excavators with 25mm pins
Backed locally by HFP Attachments
Specifications
| Feature | Specification |
|---|---|
| Bucket Width | 750mm |
| Pin Compatibility | 25mm Pins |
| Machine Class | 0.5 to 1.5 Ton Excavators |
| Tilt Angle | 45 Degrees Left and Right |
| Ram Configuration | Single Hydraulic Ram |
| Bucket Type | Hydraulic Tilting Mud Bucket |
| Applications | Grading, Levelling, Trimming, Finishing |
Package Includes
1 x HFP Heavy Duty Tilting Mud Bucket 750mm
Hoses and couplers
Two mounting pins for direct attachment
Why Choose HFP Attachments
Most suppliers just import and move boxes — then you're on your own. HFP is different.
We don't just sell attachments. We build them, support them, repair them and stand behind them.
- Australian-made attachments manufactured in-house
- Imported attachments backed by local parts and support
- Expert advice from purchase through to installation
- Workshop-based repairs and modifications available
- Local warranty support with real people you can contact
- Experienced team who understand fitment and real-world applications
Whether you choose Australian-made or imported equipment, you're dealing with a company that works with attachments every day — not just a reseller.
With HFP, you get the right attachment, correctly fitted and backed by local support.
Support & Warranty
All products are backed locally by HFP Attachments with access to parts, technical support, repairs and after-sales service.
Manufacturer's warranty applies.
Warranty claims are handled locally through HFP Attachments. In the event of a warranty issue, you deal directly with our Australian team rather than being required to return products overseas for assessment or repair.
Our goal is to minimise downtime and provide practical solutions as quickly as possible.
Important Information
To ensure correct fitment and operation, please provide:
Machine Make
Machine Model
Pin Diameter
Pin Centre to Pin Centre
Width Between Ears
Quick Hitch Type
This ensures correct fitment prior to manufacture. This attachment is configured to suit your machine setup. Final configuration and fitment are based on the specifications supplied by the customer. Machines fitted with quick hitches may require additional clearance considerations depending on hitch design and geometry.
PLEASE NOTE: Quick Connects to your machine are not included.
Product images are for illustrative purposes only.
Colour, decals, hydraulic hose routing, and minor design features may vary between production runs and ongoing product improvements.
Machine specifications should always be confirmed prior to ordering to ensure correct fitment and hydraulic compatibility.
Custom Colours
Custom colours are available on request to suit fleet, council, government, utility, contractor, and corporate requirements.
Freight & Delivery
Delivery is typically arranged to:
Your nearest freight depot, or
A commercial business with forklift facilities
Please note any property with a house is classified as residential by freight carriers and may incur additional delivery charges. Contact us with your suburb and postcode for an accurate freight quote.
