OMEF GS400 Tree Felling Head & Grapple Saw | 5–10 Tonne Excavators | 400mm Cut From $53,350 inc GST

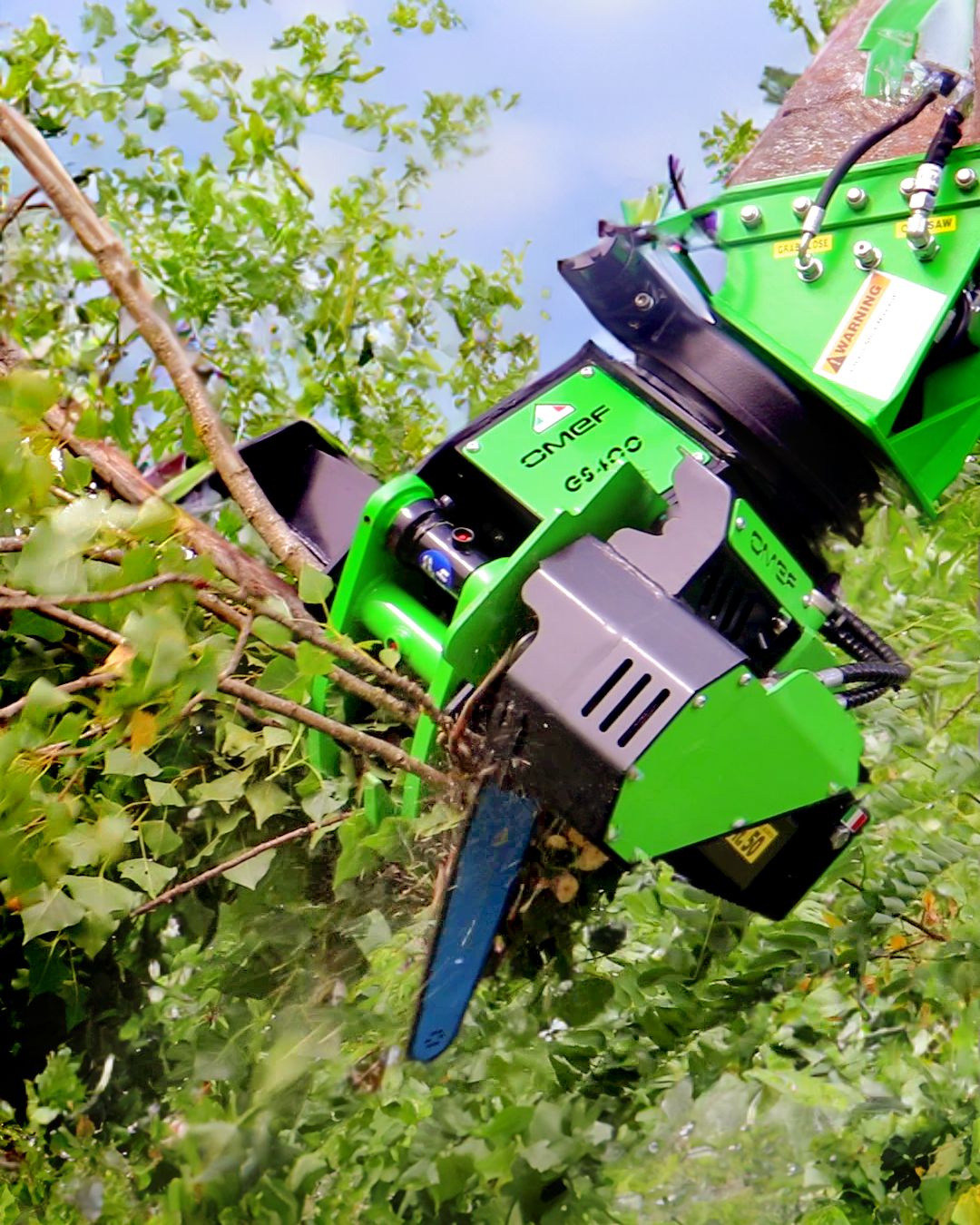

The OMEF GS400 is a premium Italian-made excavator-mounted tree felling head and grapple saw, engineered for professional tree removal, precision felling, sectional cutting and timber handling.
Designed for 5–10 tonne excavators, the GS400 combines a heavy-duty hydraulic grapple, integrated chainsaw and 360° hydraulic rotation into one powerful forestry attachment.
More than just a cutting attachment, the GS400 allows operators to securely grip a standing tree or branch, cut through the timber and retain control of the cut section for repositioning or lowering, within the machine and attachment's rated operating limits.
With a maximum cutting diameter of 400mm and a rated grapple load capacity of 1,500kg, the GS400 is ideal for professional arborists, forestry contractors, vegetation management operators, councils and specialist tree removal applications.
Key Features
- Premium Italian-made OMEF forestry equipment
- Tree felling head functionality – grip, cut, hold and reposition timber using one attachment
- 400mm maximum cutting diameter
- 360° hydraulic rotation for precise cutting and positioning
- Heavy-duty hydraulic gripping system
- Maximum grapple opening of 950mm
- Maximum rated load capacity of 1,500kg
- Integrated hydraulic chainsaw with Parker 6cc piston motor
- Self-braking saw motor
- 550mm chainsaw bar with .404" chain
- Automatic oil lubrication for saw bar
- Manual mechanical chain tensioning
- Hydraulic safety lock valve on grapple cylinder
- Pressure relief valve on saw assembly
- Heavy-duty wear-resistant steel construction
- Standard OMEF adapter plate included
Technical Specifications
| Specification | GS400 |
|---|---|
| Manufacturer | OMEF – Italy |
| Model | GS400 |
| Attachment Type | Tree Felling Head / Grapple Saw |
| Suitable Excavator | 5–10 Tonne |
| Attachment Weight | 410kg |
| Maximum Cutting Diameter | 400mm |
| Maximum Grapple Opening | 950mm |
| Maximum Rated Load | 1,500kg |
| Hydraulic Flow Requirement | 30–60 L/min |
| Hydraulic Operating Pressure | 220–250 Bar |
| Hydraulic Rotation | 360° |
| Saw Motor | Parker 6cc Piston Motor |
| Saw Bar Length | 550mm |
| Saw Chain | .404" / 1.6mm |
| Hydraulic Circuits | 2 Double-Acting |
Suitable Applications
- Professional tree felling and controlled removal
- Arboriculture and tree maintenance
- Sectional tree dismantling
- Branch cutting and pruning
- Roadside vegetation management
- Forestry and timber handling
- Land clearing and property maintenance
- Council and government vegetation management
- Civil and infrastructure maintenance
Package Includes
- Genuine Italian-Made OMEF GS400 Grapple Saw / Tree Felling Head
- Integrated Hydraulic Grapple
- Hydraulic Chainsaw Assembly with Parker Motor
- 550mm Saw Bar and Chain
- 360° Hydraulic Rotation System
- Hydraulic Hoses and Standard Fittings
- Standard OMEF Adapter Plate
Hydraulic quick-connect couplings are not included.
Australian-made machine-specific head brackets are available as an optional extra.
Australian-Made Head Bracket Options
Australian-made mounting brackets can be supplied to suit your excavator's specific pickup configuration.
Optional Head Bracket: $2,750 inc GST
Please provide your excavator make, model and hitch configuration when selecting a head bracket.
Machine Fitment & Hydraulic Requirements
The OMEF GS400 is designed for excavators within the 5–10 tonne operating class, subject to machine specifications, lifting capacity and hydraulic compatibility.
Hydraulic Requirements:
- Hydraulic Flow: 30–60 L/min
- Operating Pressure: 220–250 Bar
- Two double-acting hydraulic circuits required
- One circuit for hydraulic rotation
- One circuit for grapple and chainsaw operation via solenoid valve
Machine hydraulic specifications and mounting requirements must be confirmed prior to supply.
Warranty & Australian Support
The OMEF GS400 is supplied Australia-wide by HFP Attachments, with local technical and after-sales support through ST Engineering and Hardwood Forest Products Australia.
24-Month Structural Warranty – Covering defects in materials and workmanship, comprising the initial 12-month warranty and an additional 12 months provided by Hardwood Forest Products Australia.
12-Month Hydraulic & Mechanical Component Warranty – Covering manufacturing defects.
Warranty exclusions and conditions apply, including normal wear and tear, consumables, misuse, overloading and improper operation. All warranties are subject to our terms and conditions and applicable Australian Consumer Law.
Important Operator Information
Excavators operating grapple saws and tree felling heads must be equipped with appropriate polycarbonate operator protection and guarding.
Maximum cutting diameter and rated grapple load capacity are separate specifications. Permissible tree section weights must be assessed against the attachment rating, excavator lifting capacity and operating conditions.
Hydraulic quick-connect couplings, machine-specific mounting brackets, freight and installation are not included in the advertised base price unless otherwise specified.
Product specifications, weights, dimensions and performance figures are based on information supplied by the manufacturer and are subject to change without notice.
Machine suitability, hydraulic requirements and mounting specifications must be confirmed prior to ordering.
Australia-wide freight available, with collection available from our Kilsyth, Victoria premises.
