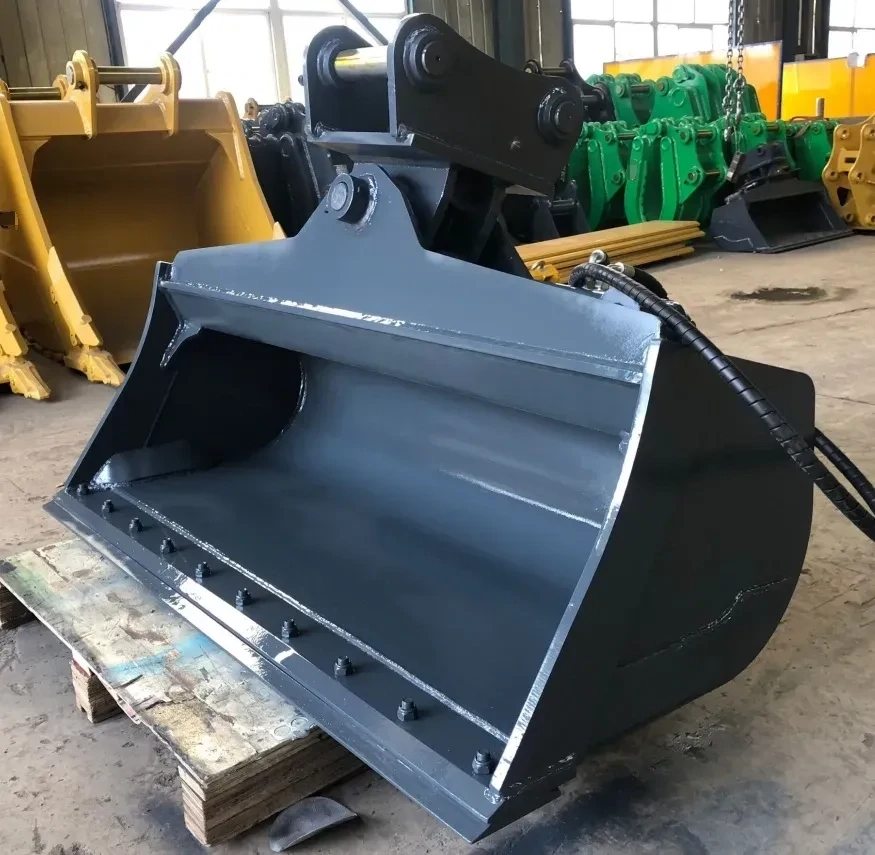

1500mm Tilting Mud Bucket – 7–8T Excavators with 50mm Pins | 45° Tilt
1500mm Tilting Mud Bucket – 7–8T Excavators with 50mm Pins
$5,790 including GST.
The HFP 1500mm Tilting Mud Bucket is designed for contractors, civil construction companies, councils, government departments, infrastructure projects, and earthmoving operators requiring precise grading, shaping, trimming, drainage construction, and finishing capabilities.
Featuring a full 45-degree tilt in either direction, this heavy-duty attachment allows operators to work complex batters, drains, swales, embankments, and finished surfaces without constantly repositioning the excavator, improving productivity and reducing operating time.
Designed for excavators in the 7–8 tonne class running 50mm pin pickups, this bucket provides the strength, control, and versatility required for demanding commercial earthmoving applications.
Built for Australian conditions and backed locally by ST Engineering and HFP Attachments for expert advice, fitment support, parts, and after-sales service.
Fitment & Bucket Class Information
Excavator tonnage is a guide only.
Bucket build class, compatibility, and pricing are determined by the machine's pickup configuration, including:
• Pin diameter
• Pin centres
• Width between ears
• Quick hitch configuration
Machines with larger pin sizes require heavier-duty bucket construction with increased material thickness and reinforcement, even where machine tonnage may overlap other classes.
This ensures correct fitment, strength, durability, and long-term performance.
Some machines may vary from standard specifications depending on hitch setup and manufacturer configuration.
Key Features & Benefits
• Full 45-degree tilt each direction
• Twin dual-acting hydraulic cylinders
• Push-pull cylinder configuration
• Heavy-duty structural construction
• Ram protectors fitted as standard
• Material shroud reduces spill-over
• Designed for grading, trimming, and finishing applications
• Improved productivity on batters and drainage work
• Bolt-on cutting edge included
• Hydraulic hoses and couplers included
• Quick hitch compatible
• Built for Australian conditions
Suitable Applications
Ideal for:
• Final trim work
• Drainage construction
• Batter shaping
• Landscaping
• Civil construction
• Roadworks
• Infrastructure projects
• Local government maintenance
• Site preparation
• General earthmoving
Functional Overview
Tilting mud buckets improve grading and finishing efficiency by allowing operators to work on angles and contours without repeatedly repositioning the machine.
The 45-degree tilt capability enables accurate shaping of drains, batters, swales, channels, and finished surfaces while reducing machine movement and improving productivity.
Twin hydraulic cylinders provide smooth and controlled operation for precise trimming and levelling applications.
Specifications
| Feature | Specification |
|---|---|
| Bucket Width | 1500mm |
| Excavator Suitability | 7–8 Ton |
| Pin Size | 50mm |
| Tilt Angle | 45° Each Direction |
| Cylinder Configuration | Twin Dual-Acting |
| Hydraulic Configuration | Push-Pull |
| Ram Protection | Included |
| Material Shroud | Included |
| Cutting Edge | Bolt-On |
| Mounting | Pin-On or Quick Hitch Compatible |
Specifications are indicative only and may vary depending on machine requirements and configuration.
Package Includes
• 1500mm Tilting Mud Bucket
• Twin hydraulic cylinders
• Hydraulic hoses and couplers
• Bolt-on cutting edge
• Wear parts
• Two mounting pins
Supplied ready for installation.
Important Information
To ensure correct fitment and operation, please provide:
• Machine make
• Machine model
• Hydraulic flow
• Hydraulic pressure
• Pin diameter
• Pin centre to pin centre
• Width between ears
• Quick hitch type
This attachment is custom-configured to suit your excavator setup.
Final configuration and fitment are based on the specifications supplied by the customer.
Machines fitted with quick hitches may require additional clearance considerations depending on hitch design and geometry.
Product images are for illustrative purposes only.
Custom colours are available on request to suit fleet, council, government, utility, contractor, and corporate requirements.
Colour, decals, hydraulic hose routing, and minor design features may vary between production runs and ongoing product improvements.
Machine specifications should always be confirmed prior to ordering to ensure correct fitment and hydraulic compatibility.
Freight & Delivery
Delivery is typically arranged to:
• Your nearest freight depot, or
• A commercial business with forklift facilities
Residential and farm delivery options are also available.
Please note any property with a house is classified as residential by freight carriers and may incur additional delivery charges.
Contact us with your suburb and postcode for an accurate freight quote.
Pickup is also available from our Kilsyth facility.
Support & Warranty
All attachments are backed locally with access to parts, technical support, and after-sales service.
• 12-Month Manufacturer's Warranty except where warranty indicates longer
• Ongoing After-Sales Technical Support
