HFP HYDRAULIC MULTI QUICK HITCH – 70MM PIN EXCAVATORS
Upgrade your excavator with a hydraulic multi quick hitch, designed to suit machines with 70mm pin size.
This advanced hitch system allows fast and efficient attachment changes without leaving the cab, while delivering increased safety through a triple locking system.
✅ KEY FEATURES
Suits 70mm pin excavators
Ideal for 15–27 tonne machines
Hydraulic operation
– change attachments from the cab

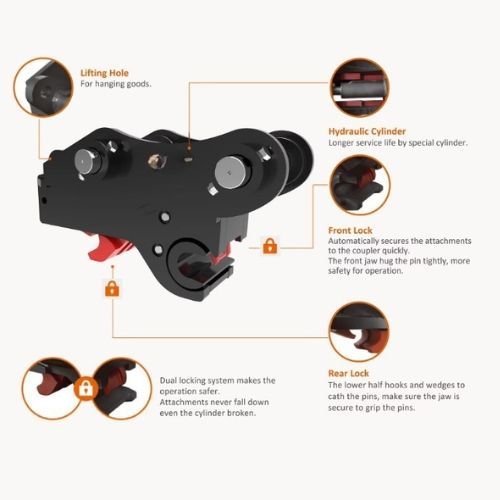

Triple safety locking system
for maximum attachment security
Heavy-duty construction for demanding applications
Reduces downtime and improves job efficiency
⚙️ SPECIFICATIONS
Pin Diameter:
70–80mm
Pin Centres:
380–435mm
Between Ears:
300–340mm
Machine Suitability:
15–27 tonne excavators
Oil Flow Requirement:
10–20 L/min
🔩 FITMENT
Designed to suit machines with 70mm pins
Compatible with most excavator brands
Supplied to suit your machine specifications
⚠️ IMPORTANT
Pickup specifications pin diameter, centres, and ear width must be confirmed at time of order to ensure correct fitment.
