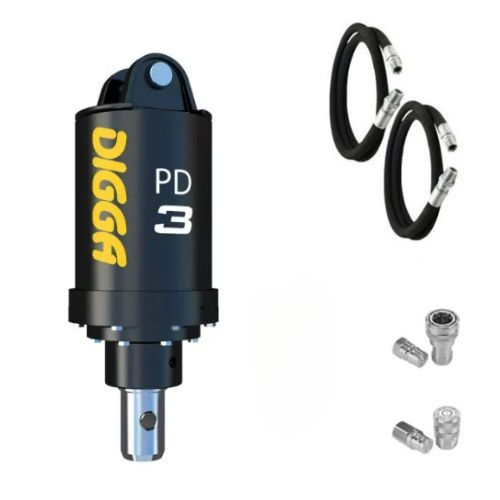

Digga PD3 Auger Drive Packages | Suits 2 to 5 Ton Excavators
Australian Made Auger Drive Packages for 2 to 5 Ton Excavators
The Digga PD3 Auger Drive is engineered for excavators operating in the 2 to 5 tonne class and is ideally suited to fencing, civil construction, landscaping, foundation drilling, utility installation, sign installation and general earthmoving applications.
Manufactured in Australia and fitted with a genuine Digga/Eaton bell motor, the PD3 delivers outstanding drilling performance, reliability and torque across a wide range of ground conditions.
Featuring Digga's proven planetary gearbox design, top-mounted hose ports, extreme-duty shaft locking system and a compact high-torque gearbox, the PD3 has become one of Australia's most trusted auger drives for professional contractors.
Available with drive-only, single pin hitch and double pin hitch package configurations. Optional HALO alignment systems are also available.
Key Features
Australian Made
Genuine Digga planetary gearbox
Genuine Digga/Eaton bell motor
Compact high torque design
Top mounted hose ports
No case drain required
Extreme duty shaft locking system
Highly efficient design with fewer moving parts
Compatible with Digga HALO alignment system
Low maintenance design
5 Year Gearbox Warranty
3 Year Motor Warranty
Specifications
Specification
PD3
Recommended Machine Size
2–5 Tonnes
Recommended Flow Range
45–75 LPM
Nominal Torque
3544 Nm
Motor
2K Geroler
Maximum Pressure
240 Bar
Maximum Flow
115 LPM
Maximum Power
25kW (34HP)
Overall Length
579mm
Diameter
240mm
Weight
57kg
Output Shaft
65mm Round
Case Drain Required
No
Recommended Auger Series
4 Series
Maximum Auger Diameter Earth
750mm
Maximum Auger Diameter Clay/Shale
600mm
Package Includes
Digga PD3 Auger Drive
Hydraulic Hoses
Couplers
Linkage
Selected Hitch Configuration
Warranty & Support
5 Year Gearbox Warranty
3 Year Motor Warranty
Local Technical Support
Spare Parts Support Available
Why Choose HFP Attachments
Most suppliers simply import attachments and move boxes. HFP Attachments focuses on supplying quality equipment backed by local support and technical knowledge.
Australian-owned business
Local support and technical assistance
Spare parts availability
National freight network
Extensive range of Digga attachments and spare parts
Experienced team with real-world drilling knowledge
Whether you're drilling fence post holes, utility foundations or large civil projects, HFP Attachments provides reliable equipment backed by local service and support.
Important Information
Please provide:
Machine Make
Machine Model
Pin Diameter
Pin Centre to Pin Centre
Width Between Ears
Hitch Type
This information allows us to ensure the correct hitch configuration is supplied.
Product images are for illustrative purposes only.
Specifications may change without notice.
