Digga PDX2-2 Auger Drive Package – From $2,590 inc GST | Australian Made Earth Drill for Micro & Mini Excavators
Australian Made Planetary Auger Drive for Professional Drilling Applications
From $2,590 including GST.
The Digga PDX2-2 Auger Drive is an Australian-made planetary earth drill designed for micro and mini excavators requiring reliable drilling performance across fencing, landscaping, civil construction, utility installation and general earthmoving applications.
Featuring Digga's compact high-torque planetary gearbox and Bell Motor developed in conjunction with Danfoss, the PDX2-2 delivers up to 2307Nm of torque while maintaining a compact footprint suited to smaller excavators and confined work areas.
The innovative gearbox design allows the drive unit to enter the hole during operation, maximising drilling depth without extensions while reducing downtime and improving productivity on site.
Designed and manufactured in Australia, the PDX2-2 is built for demanding contractor applications and backed by Digga's industry-leading warranty and HFP Attachments' local support.
Available with a range of hitch configurations to suit different excavator requirements.
Key Features
• Proudly produced and manufactured in Australia
• Compact high-torque planetary gearbox
• Digga Bell Motor developed with Danfoss
• No case drain required
• Extreme duty shaft locking system
• Drive can enter the hole for increased drilling depth
• Top-mounted hose routing design
• Reduced maintenance design
• Suitable for a wide range of drilling applications
• Industry-leading warranty coverage
Suitability
The Digga PDX2-2 is designed for micro and mini excavators operating within a 30–50 Lpm hydraulic flow range and is commonly used by fencing contractors, landscapers, arborists, civil contractors, councils, utility providers and construction companies requiring a compact but powerful drilling solution.
Suitable for machines from manufacturers including Kubota, Caterpillar, Komatsu, Yanmar, Takeuchi, Bobcat, Hitachi, Kobelco, JCB, Volvo, Hyundai, Wacker Neuson, SANY, Develon and other compatible excavators within the specified hydraulic flow range.
Common applications include fence post boring, tree planting, retaining wall construction, sign installation, utility projects, foundation work, landscaping and general construction drilling.
Specifications
| Specification | Digga PDX2-2 |
|---|---|
| Recommended Flow Range | 30–50 Lpm |
| Maximum Torque | 2307 Nm |
| Maximum Pressure | 240 Bar |
| Maximum Power | 25kW (34hp) |
| Overall Length | 557 mm |
| Diameter | 187 mm |
| Weight | 45 kg |
| Output Shaft | 65mm Round |
| Motor | Digga Bell Motor |
| Case Drain Required | No |
| Recommended Auger Series | 4 Series |
| Maximum Auger Diameter (Earth) | 600 mm |
| Maximum Auger Diameter (Clay/Shale) | 450 mm |
| Warranty | 5 Year Gearbox / 3 Year Motor |

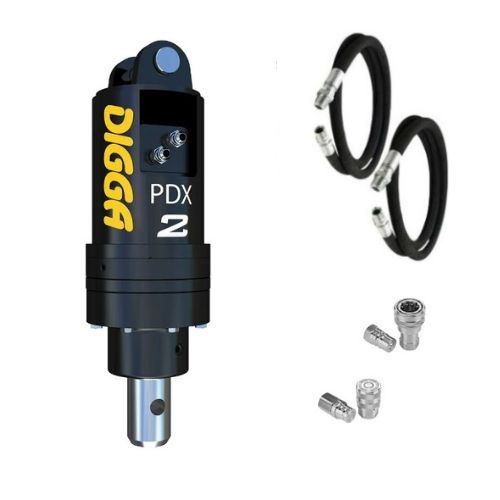

Package Includes
• Digga PDX2-2 Auger Drive
• Hydraulic hoses and couplers to suit the drive unit
• Manufacturer warranty
• HFP technical support
Optional Extras:
• Link Block
• Single Pin Hitch
• Double Pin Hitch
• Double Pin Cradle Hitch
Why Choose HFP Attachments
Most suppliers just import and move boxes — then you're on your own. HFP is different.
• Imported and Australian-made attachments available
• Expert advice from purchase through to installation
• Local warranty, repairs, and technical support
• Experienced team who understand fitment and real-world applications
With HFP, you get the right attachment, correctly fitted, and backed by local support.
Support & Warranty
The Digga PDX2-2 is backed by Digga's industry-leading warranty program and supported locally by HFP Attachments.
Support includes:
• 5 Year Gearbox Warranty
• 3 Year Motor Warranty
• Spare parts support
• Technical support
• Installation assistance
• Product selection advice
• After-sales support
Important Information
To ensure correct fitment please provide:
• Machine Make
• Machine Model
• Pin Diameter
• Pin Centre to Pin Centre
• Width Between Ears
• Quick Hitch Type
Hydraulic hoses and couplers to suit the auger drive are included.
Quick connects to machine are not included.
Auger bits, extensions and hitch options are sold separately unless otherwise specified.
Freight & Delivery
Delivery is typically arranged to:
• Your nearest freight depot, or
• A commercial business with forklift facilities
Please note any property with a house is classified as residential by freight carriers and may incur additional delivery charges. Contact us with your suburb and postcode for an accurate freight quote.
Fitment & Bucket Class Information
The Digga PDX2-2 can be supplied with a range of hitch options to suit different excavator makes and pickup configurations.
Machine pickup dimensions vary between manufacturers and models. To ensure correct supply, HFP Attachments requires confirmation of pin diameter, pin centres, ear width and quick hitch type prior to ordering.
Quick connects to machine are not included.
