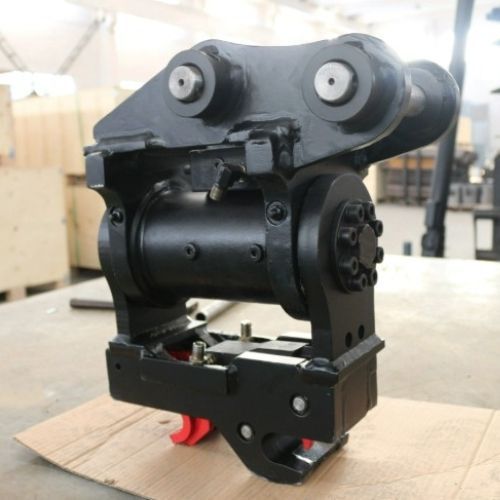

HFP Hydraulic Tilting Quick Hitch – Triple Locking – 25mm Pin Mini Excavators
HFP Hydraulic Tilting Quick Hitch – Triple Locking – 25mm Pin Mini Excavators
Hydraulic tilting quick hitch designed to maximise versatility, precision, and productivity on mini excavators. Engineered to deliver controlled tilt movement while maintaining secure attachment engagement across a wide range of applications.
This system enables fast attachment changes from the cab combined with hydraulic tilt functionality, reducing repositioning, improving efficiency, and delivering a higher quality finish on every job.
Backed by ST Engineering, all HFP attachments are supported locally with expert advice, correct fitment, and ongoing service support.
Product Demonstration
See the tilting function and attachment engagement in operation.
Key Features
• Suits mini excavators with 25mm pin size
• Suitable for machines in the 1 to 3 tonne range
• Hydraulic tilting function for increased versatility and control
• Available with 140° or 180° tilt depending on configuration
• Hydraulic quick hitch for fast attachment changes from the cab
• Triple locking system designed to maintain secure attachment retention
• Supplied as a complete hydraulic kit including hoses, fittings, and in-cab controls
• Heavy duty construction designed for consistent use
• Suitable for contractor, hire fleet, and government applications
Specifications
• Pin Diameter 25mm
• Machine Suitability 1 to 3 tonne
• Hitch Cylinder Max Pressure 200 bar
• Operating Flow 10 to 20 litres per minute
• Tilt Cylinder Max Pressure 210 bar
• Tilt Oil Flow 2 to 3 litres per minute
• Tilt Angle 140° or 180°
• Tilt Torque 900 Nm
• Remaining Torque 2400 Nm
Fitment
Designed to suit excavators with 25mm pins within the 1 to 3 tonne class.
Machine pickup specifications including pin diameter, centres, and ear width can be confirmed prior to supply to ensure correct fitment.
Installation
Supplied as a complete installation-ready hydraulic kit including hoses, fittings, and in-cab controls.
Designed to simplify setup and reduce installation time on site or in workshop environments.
Safety and Compliance
This hydraulic tilting quick hitch incorporates a triple locking system designed to maintain secure engagement of both front and rear attachment pins during operation.
The system is engineered to retain attachments in the event of hydraulic pressure loss while allowing controlled tilt movement.
Designed to meet Australian safety standards when installed and operated correctly.
Applications
Ideal for:
• Final trim and finishing work
• Drainage and trench shaping
• Landscaping and detailed excavation
• Batter work and profiling
• Working in confined or tight access environments
Delivery
Australia wide delivery available with depot and business delivery options.
Pickup available from Kilsyth VIC.
Why Choose HFP Attachments
HFP Attachments is backed by ST Engineering, providing:
• Fitment support to ensure correct specification
• Local service, support, and repairs
• Consistent product supply
• Technical support across a wide range of applications
• Suitable for contractor, hire fleet, and government use
