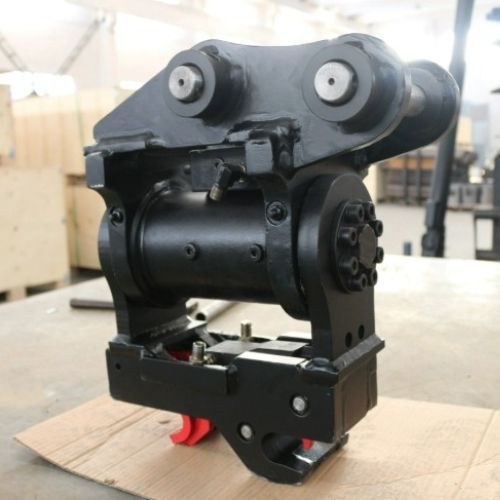

HFP Hydraulic Tilting Quick Hitch – Triple Locking – 45mm Pin Excavators
HFP Hydraulic Tilting Quick Hitch – Triple Locking – 45mm Pin Excavators
Hydraulic tilting quick hitch designed for higher capacity excavators where increased torque, control, and durability are critical. Engineered to deliver precise attachment movement while maintaining secure engagement across demanding applications.
This system enables fast attachment changes from the cab combined with hydraulic tilt functionality, reducing repositioning, improving efficiency, and delivering a higher quality finish on every job.
Backed by ST Engineering, all HFP attachments are supported locally with expert advice, correct fitment, and ongoing service support.
Product Demonstration
See the tilting function and attachment engagement in operation.
Key Features
• Suits excavators with 45mm pin size
• Suitable for machines in the 6 to 8 tonne range
• Hydraulic tilting function for increased versatility and control
• Available with 140° or 180° tilt depending on configuration
• Hydraulic quick hitch for fast attachment changes from the cab
• Triple locking system designed to maintain secure attachment retention
• High torque design suited to heavier duty applications and extended service life
• Supplied as a complete hydraulic kit including hoses, fittings, and in-cab controls
• Heavy duty construction designed for consistent use
• Suitable for contractor, hire fleet, and government applications
Specifications
• Pin Diameter 45mm
• Machine Suitability 6 to 8 tonne
• Hitch Cylinder Max Pressure 200 bar
• Operating Flow 10 to 20 litres per minute
• Tilt Cylinder Max Pressure 210 bar
• Tilt Oil Flow 15 to 20 litres per minute
• Tilt Angle 140° or 180°
• Tilt Torque 7000 Nm
• Remaining Torque 20000 Nm
Fitment
Designed to suit excavators with 45mm pins within the 6 to 8 tonne class.
Machine pickup specifications including pin diameter, centres, and ear width can be confirmed prior to supply to ensure correct fitment.
Installation
Supplied as a complete installation-ready hydraulic kit including hoses, fittings, and in-cab controls.
Designed to simplify setup and reduce installation time on site or in workshop environments.
Safety and Compliance
This hydraulic tilting quick hitch incorporates a triple locking system designed to maintain secure engagement of both front and rear attachment pins during operation.
The system is engineered to retain attachments in the event of hydraulic pressure loss while allowing controlled tilt movement.
Designed to meet Australian safety standards when installed and operated correctly.
Applications
Ideal for:
• Final trim and finishing work
• Drainage and trench shaping
• Landscaping and detailed excavation
• Batter work and profiling
• Civil and construction applications requiring precision
Delivery
Australia wide delivery available with depot and business delivery options.
Pickup available from Kilsyth VIC.
