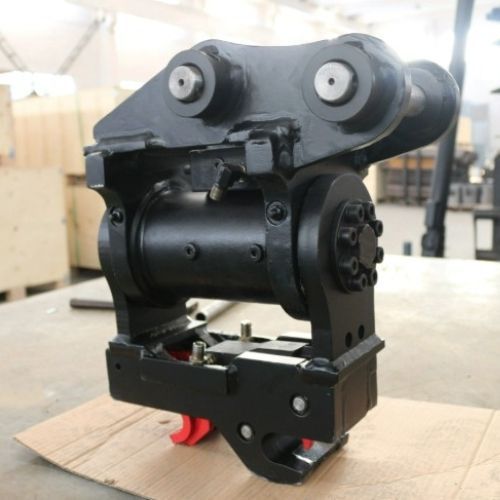

HFP Hydraulic Tilting Quick Hitch – Triple Locking – 65mm Pin Excavators
HFP Hydraulic Tilting Quick Hitch – Triple Locking – 65mm Pin Excavators
Hydraulic tilting quick hitch designed for larger excavators where increased torque, strength, and control are essential. Engineered to handle high loads while delivering precise attachment movement and maintaining secure engagement across demanding civil and construction applications.
This system enables fast attachment changes from the cab combined with hydraulic tilt functionality, reducing repositioning, improving efficiency, and delivering a higher quality finish on every job.
Backed by ST Engineering, all HFP attachments are supported locally with expert advice, correct fitment, and ongoing service support.
Product Demonstration
See the tilting function and attachment engagement in operation.
Key Features
• Suits excavators with 65mm pin size
• Suitable for machines in the 15 tonne and above range
• Hydraulic tilting function for increased versatility and control
• Available with 140° tilt depending on configuration
• Hydraulic quick hitch for fast attachment changes from the cab
• Triple locking system designed to maintain secure attachment retention
• High torque design suited to heavy-duty and high load applications
• Supplied as a complete hydraulic kit including hoses, fittings, and in-cab controls
• Heavy duty construction designed for consistent use in demanding conditions
• Suitable for contractor, hire fleet, and government applications
Specifications
• Pin Diameter 65mm
• Machine Suitability 15 tonne plus
• Hitch Cylinder Max Pressure 200 bar
• Operating Flow 10 to 20 litres per minute
• Tilt Cylinder Max Pressure 210 bar
• Tilt Oil Flow 25 to 32 litres per minute
• Tilt Angle 140°
• Tilt Torque 15000 Nm
• Remaining Torque 43000 Nm
Fitment
Designed to suit excavators with 65mm pins within the 15 tonne and above class.
Machine pickup specifications including pin diameter, centres, and ear width can be confirmed prior to supply to ensure correct fitment.
Installation
Supplied as a complete installation-ready hydraulic kit including hoses, fittings, and in-cab controls.
Designed to simplify setup and reduce installation time on site or in workshop environments.
Safety and Compliance
This hydraulic tilting quick hitch incorporates a triple locking system designed to maintain secure engagement of both front and rear attachment pins during operation.
The system is engineered to retain attachments in the event of hydraulic pressure loss while allowing controlled tilt movement.
Designed to meet Australian safety standards when installed and operated correctly.
Applications
Ideal for:
• Final trim and finishing work
• Drainage and trench shaping
• Civil and construction applications
• Batter work and profiling
• High production environments requiring precision
Delivery
Australia wide delivery available with depot and business delivery options.
Pickup available from Kilsyth VIC.
Why Choose HFP Attachments
HFP Attachments is backed by ST Engineering, providing:
• Fitment support to ensure correct specification
• Local service, support, and repairs
• Consistent product supply
• Technical support across a wide range of applications
• Suitable for contractor, hire fleet, and government use
