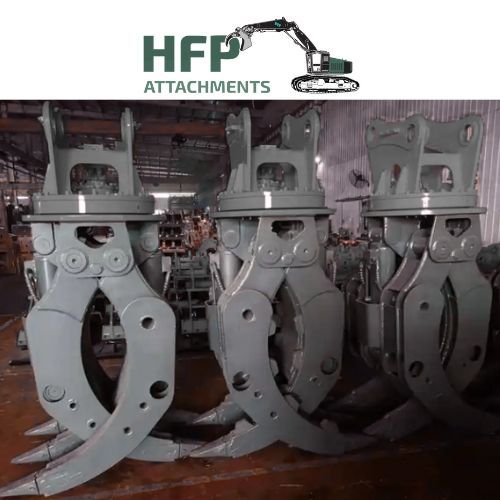

HFP Rotating Hydraulic Grapple – 24–30T Excavators | 90–100mm Pin | $25,500 inc GST

HFP Rotating Hydraulic Grapple – 24–30T Excavators | 90–100mm Pin

$25,500 including GST.

The HFP Rotating Hydraulic Grapple is engineered for 24–30 tonne excavators running 90–100mm pin configurations, delivering high-capacity, controlled material handling performance across demolition, scrap handling, timber work, rock placement, quarry operations, waste handling, and bulk material movement applications.

Designed for demanding Australian operating conditions, this heavy-duty rotating grapple features continuous 360° hydraulic rotation, allowing operators to accurately position and handle large, awkward, and high-load materials while improving productivity, control, and operational safety.

Suitable for infrastructure contractors, demolition contractors, hire fleets, quarry operators, OEM supply programs, councils, and government operators requiring dependable rotating attachment performance with local support and correct machine fitment.

Each grapple is configured to suit your machine pickup to ensure proper geometry, reliable operation, and long service life.

Backed locally with parts, technical support, and after-sales service.

---

Key Features & Benefits

• Suits 24–30 tonne excavators
• Suits 90–100mm pin configurations
• Continuous 360° hydraulic rotation
• High-capacity rotating grapple design
• Swiss-manufactured hydraulic rotary motor
• Integrated hydraulic braking system
• Wear-resistant NM400 steel construction
• 42CrMo alloy steel pins with oil passages
• Heavy-duty hydraulic cylinders with Hallite seals
• Manganese-molybdenum wear teeth
• Designed for high-load commercial applications
• Excellent visibility and material control
• Designed for Australian conditions
• Backed locally with parts, technical support, and after-sales service

---

Suitable Applications

Ideal for:

• Demolition
• Scrap handling
• Timber handling
• Rock placement
• Quarry operations
• Waste handling
• Land clearing
• Civil construction
• Bulk material movement
• Infrastructure projects

---

Functional Overview

Rotating hydraulic grapples provide controlled gripping and continuous rotational positioning for accurate handling of large, awkward, and irregular materials.

The integrated 360° hydraulic rotation system allows operators to:

• Position materials more accurately
• Improve handling efficiency
• Reduce repositioning time
• Improve safety during handling operations
• Increase productivity in confined, heavy-duty, and technical environments

Designed for demanding commercial, quarry, demolition, and infrastructure applications, these grapples deliver smooth and reliable rotation performance while maintaining excellent gripping strength and operator control.

---

Design & Construction

Continuous 360° Hydraulic Rotation

Integrated Swiss-manufactured rotary motor delivers smooth continuous rotation with built-in braking for improved control and positioning accuracy.

Heavy-Duty Grapple Structure

Wear-resistant NM400 steel construction provides high abrasion resistance with an optimised strength-to-weight ratio for large excavator applications.

Heavy-Duty Hydraulic Cylinders

Honed cylinder tubes fitted with Hallite seals provide consistent cycle times and extended service life.

42CrMo Alloy Steel Pins

High-strength pins with internal oil passages are designed for sustained duty cycles and demanding commercial applications.

Manganese-Molybdenum Wear Teeth

Engineered for abrasive, high-impact materials and repeated high-cycle operation.

---

Machine Compatibility

• Excavator suitability: 24–30 tonnes
• Pin size suitability: 90–100mm
• Compatibility: Suitable for major excavator makes and models within this operating range
• Hydraulic rotating operation
• Custom pickup supplied to suit your machine

Machine make, model, and hydraulic specifications must be provided during checkout or after purchase to ensure correct configuration and fitment.

---

Fitment Confirmation Required

To ensure correct fitment and operation, please provide:

• Machine make
• Machine model
• Pin diameter
• Pin centre to pin centre
• Width between ears
• Quick hitch type
• Auxiliary hydraulic flow and pressure specifications

This attachment is custom-configured to suit your excavator setup.

Final configuration and fitment are based on the specifications supplied by the customer.

Machines fitted with quick hitches may require additional clearance considerations depending on hitch design and geometry.

---

Excavator Size & Fitment Notes

Excavator tonnage ranges listed are intended as a general guide only.

Machine operating weights, linkage geometry, hydraulic capability, quick hitch configurations, arm design, and intended application can vary significantly between manufacturers and models.

Machines within the same tonne range may utilise different pin sizes, hydraulic flows, pickup geometries, and linkage configurations depending on manufacturer design and operating requirements.

Larger pin configurations, heavier-duty hitch setups, and high-flow hydraulic systems may require reinforced pickup configurations, heavier structural components, and alternative hydraulic setup considerations to ensure safe operation and long-term durability.

Some machines may therefore fall into a larger attachment class than their operating weight alone would normally suggest.

Factors affecting sizing can include:

• Pin diameter
• Pickup geometry
• Hydraulic hitch configuration
• Hydraulic flow and pressure
• Lift capacity requirements
• Machine stability
• Material type and operating environment

For this reason, all rotating grapples are configured based on the machine specifications supplied at the time of order to ensure correct fitment, hydraulic compatibility, structural suitability, and optimal performance.

---

Specifications

Specifications are indicative only and may vary depending on configuration and machine requirements.

Please contact our team to confirm specifications for your application.

---

Package Includes

• Rotating hydraulic grapple assembly
• Pins and hydraulic connections supplied
• Custom pickup to suit your machine

Machine-side quick connects are not included.

---

Product Images

Images are for illustration purposes only and may show optional extras, different configurations, or alternative sizes.

Actual product supplied may vary depending on machine fitment, selected specifications, and ongoing product improvements.

---

Freight & Delivery

Delivery is typically arranged to:

• Your nearest freight depot, or
• A commercial business with forklift facilities

Residential and farm delivery options are also available.

Please note any property with a house is classified as residential by freight carriers and may incur additional delivery charges.

Contact us with your suburb and postcode for an accurate freight quote.

Pickup is also available from our Kilsyth facility.

---

Support & Warranty

All attachments are backed locally with access to parts, technical support, and after-sales service.

• 12-Month Manufacturer’s Warranty
• Ongoing After-Sales Technical Support

---

Why Choose HFP Attachments

Most suppliers just import and move boxes — then you’re on your own. HFP is different.

• Australian-made and imported attachment solutions available
• Backed locally with parts, technical support, and after-sales service
• Expert advice from purchase through to installation
• Local warranty, repairs, and technical support
• Experienced team who understand real-world applications

With HFP, you get:

• Quality attachment solutions tailored to your application
• Local backup and ongoing support
• Confidence working with an experienced Australian supplier

Don’t just buy attachments — partner with a team that supports what they sell.

---
