Extreme torque, precision drilling, and engineered for the most demanding earthmoving projects.

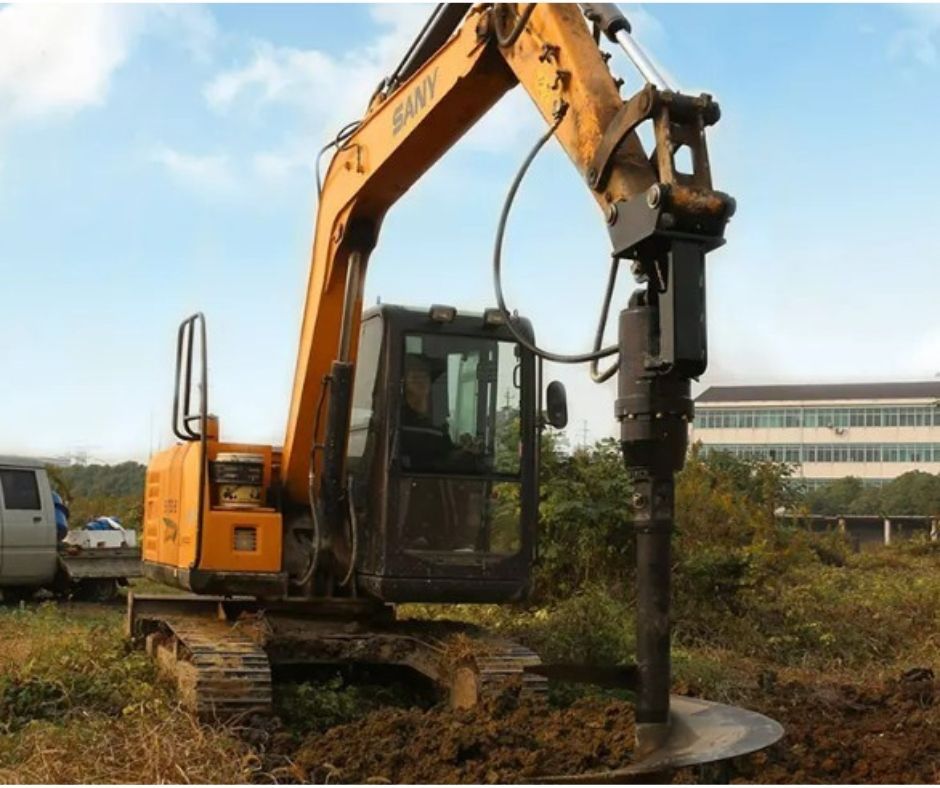

The HFP100000 Excavator Earth Auger
is a high-quality, heavy-duty attachment designed to deliver maximum torque and efficiency for the largest excavators. Rated up to 100,000 N·m, this auger drive combines an advanced planetary epicyclic gearbox with high-quality Eaton hydraulic motors to ensure long service life, low noise, and outstanding reliability in the toughest ground conditions.
Optional rock and tungsten bits are available separately to suit specific soil types – cone-shaped rock bits for frozen or rocky ground and fish-tail tungsten bits for softer soils like clay or loess. Forged hood ears, a safety-focused non-dislodgement shaft, and robust hoses and adaptors make this drive safe, dependable, and easy to maintain for large-scale drilling operations.
✅ Key Features: • Torque up to 100,000 N·m for extreme drilling tasks • Forged hood ears with locked pins for maximum safety • High-quality Eaton hydraulic motor with failure rate under 0.2% • Planetary epicyclic gearbox for amplified torque and durability • Non-dislodgement shaft ensures safe operation • Supplied standard with premium hoses and adaptors • Optional rock and tungsten auger bits sold separately
⚙️ Specifications Table:
Specification
Detail
Carrier Weight
21–50+ Ton Excavators
Maximum Torque
103509 N·m
Operating Pressure
350 Bar
Oil Flow Range
100–280 L/min
Rotary Speed
5–13 rpm
Hydraulic Hose Size
1 ½ Inch
Output Shaft
□110 or Ф150
Unit Weight
480 kg
Auger Diameter Range
300–1800 mm
Auger Length
2300 mm
📦 Package Includes: • HFP100000 Auger Drive Unit • High-quality hoses and adaptors • Rock and tungsten auger bits sold separately
🛡️ Warranty & Support: 2 year warranty + lifetime support
