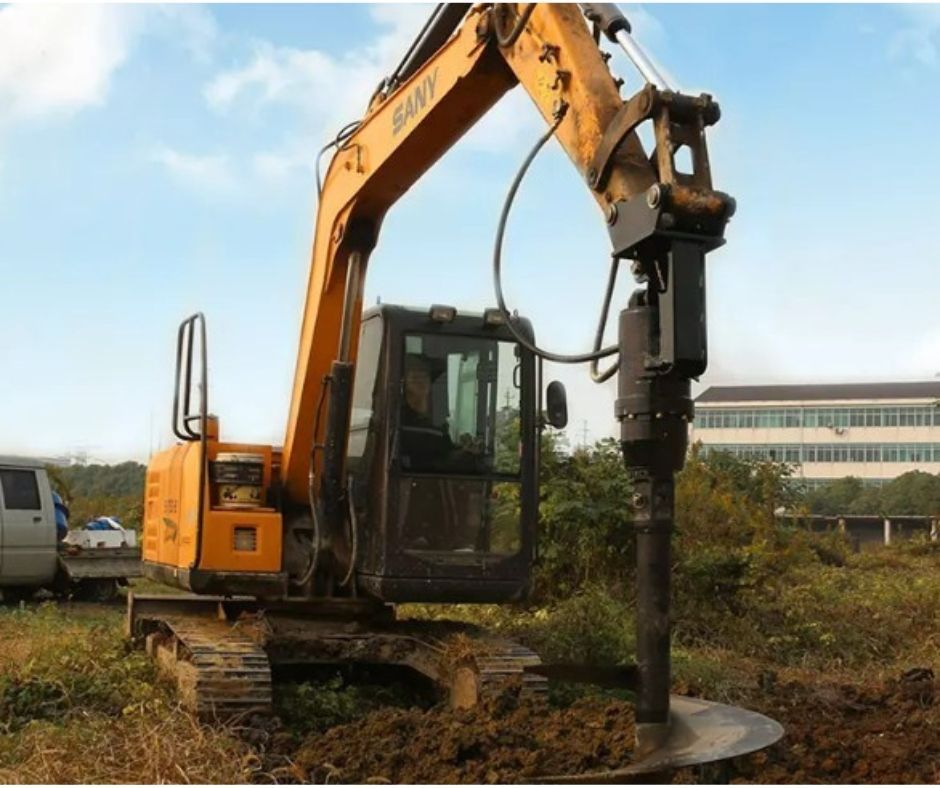

HFP15000 Hydraulic Auger Drive For Excavators | 13 to 17 Ton Excavators | 75mm Square Output Shaft | $8,490 inc GST

Extreme Torque Hydraulic Auger Drive For Professional Drilling Applications

The HFP15000 Hydraulic Auger Drive is engineered for excavators operating in the 13 to 17 tonne class, delivering exceptional torque output, controlled drilling performance, and long service life across demanding drilling applications.

Designed for fencing, footing installation, foundation drilling, piling preparation, tree planting, utility installation, civil construction, agricultural projects, and infrastructure works, the HFP15000 provides powerful drilling capability while maintaining smooth hydraulic control and excellent reliability.

Built for Australian conditions, this auger drive is ideally suited to contractors, councils, government departments, utility providers, hire fleets, OEMs, and procurement managers seeking a dependable and serviceable auger solution.

Designed for Australian operating conditions and backed locally by ST Engineering and HFP Attachments for expert advice, fitment support, parts, and after-sales service.

KEY FEATURES & BENEFITS

• Extreme torque hydraulic drive system

• Up to 15,046Nm torque output

• Heavy-duty epicyclic gearbox

• 75mm square output shaft

• Compatible with HFP A6 and A8 auger bit ranges

• Supports auger diameters from 150mm to 1200mm

• Smooth drilling performance across varied ground conditions

• Hydraulic hoses and adaptors included

• Built for Australian conditions

• 2-Year Manufacturer's Warranty

SUITABLE APPLICATIONS

Ideal for:

• Fence post installation

• Rural fencing

• Tree planting

• Utility installation

• Foundation drilling

• Footing installation

• Civil construction

• Agricultural applications

• Sign installation

• General earthworks

• Piling preparation

• Infrastructure projects

FUNCTIONAL OVERVIEW

The HFP15000 is designed to deliver extreme torque output while maintaining smooth rotation and hydraulic efficiency.

Its high-capacity hydraulic motor and heavy-duty epicyclic gearbox provide efficient torque multiplication, allowing operators to complete demanding drilling tasks with excellent control and reliability.

The 75mm square output shaft provides increased strength and durability for larger augers and higher torque applications.

DESIGN & CONSTRUCTION

Extreme Torque Hydraulic Drive System

Designed to deliver strong, consistent torque output in demanding drilling conditions.

Heavy-Duty Epicyclic Gearbox

Provides efficient torque multiplication and extended service life.

Heavy-Duty 75mm Square Output Shaft

Designed for secure torque transfer and long-term durability in demanding drilling applications.

Reinforced Housing Construction

Built to withstand repetitive commercial, civil, utility, and infrastructure drilling projects.

Excavator-Matched Design

Optimised for excavators in the 13 to 17 tonne class, providing excellent stability and drilling control.

MACHINE COMPATIBILITY

• Carrier Type: Excavator

• Typical Excavator Suitability: 13 to 17 Ton

• Suitable for all major excavator makes and models

Machine make and model details should be supplied to confirm hitch compatibility and mounting requirements.

SPECIFICATIONS

Feature	Specification
Excavator Compatibility	13–17 Ton
Maximum Torque	15,046Nm
Operating Pressure	240 Bar
Oil Flow Range	80–151 L/min
Rotary Speed	20–39 RPM
Hydraulic Hose Connection	1 Inch
Output Shaft	75mm Square
Unit Weight	167kg
Unit Height	930mm
Maximum Diameter	290mm
Compatible Auger Range	HFP A6 and A8 Series
Supported Auger Length	1750mm
Supported Auger Diameter	150–1200mm

Specifications are indicative only and may vary depending on supplier updates and ongoing product improvements.

PACKAGE INCLUDES

• HFP15000 Hydraulic Auger Drive

• Hydraulic hoses and adaptors

Auger bits are sold separately.

Machine-side quick connects are not included.

Optional mounting configurations available:

• Double Pin Cradle Hitch

• Double Pin Hitch

• Single Pin Hitch

IMPORTANT INFORMATION

To ensure correct fitment and operation, please provide:

• Machine make

• Machine model

• Pin diameter

• Pin centre to pin centre

• Width between ears

• Quick hitch type

• Auxiliary hydraulic flow

• Auxiliary hydraulic pressure

This attachment is custom-configured to suit your excavator setup.

Final configuration and fitment are based on the specifications supplied by the customer.

Machines fitted with quick hitches may require additional clearance considerations depending on hitch design and geometry.

Product images are for illustrative purposes only.

Custom colours are available on request to suit fleet, council, government, utility, contractor, and corporate requirements.

Colour, decals, hydraulic hose routing, and minor design features may vary between production runs and ongoing product improvements.

Machine specifications should always be confirmed prior to ordering to ensure correct fitment and hydraulic compatibility.

FREIGHT & DELIVERY

Standard shipping (website shipping through checkout) is to nearest depot or commercial business with forklift facilities.

Residential/farm deliveries are also available but all properties with a house are considered residential deliveries by freight companies and the freight costs are higher.

Please contact us for a quote if you want residential delivery.
