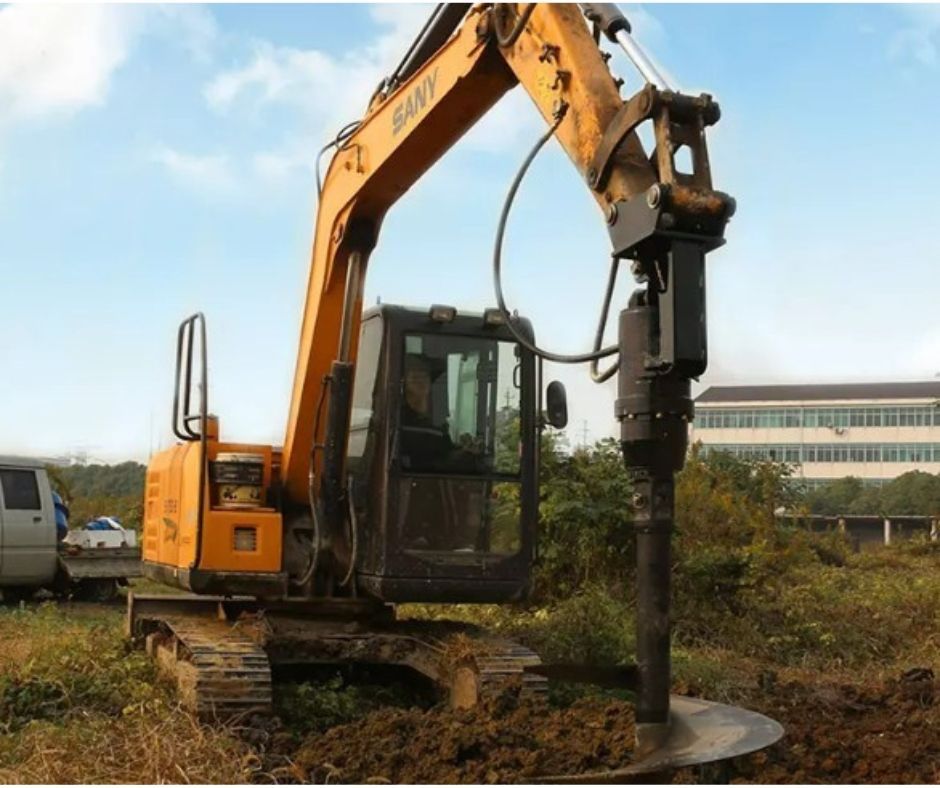

The HFP3500 Series Auger Drive
is engineered for 2.5–4.5 tonne excavators and skid steer loaders, delivering high torque, reliability, and efficiency
for a wide range of drilling applications. Perfect for fence post installation, tree planting, foundation drilling, and utility works, this auger drive is built to withstand demanding work environments and maximize productivity.
โ๏ธ Key Features & Benefits
Forged Hood Ears & Locked Pins:
Extra safety to prevent hood detachment under heavy loads
High-Quality Hydraulic Motors:
EATON motor for stable, high-torque output and consistent drilling
Epicyclic Gearbox:
Efficient torque multiplication for enhanced performance and durability
Non-Dislodgement Shaft:
Single-piece drive shaft locked into housing for operator safety
Hoses and Adaptors Included:
Ready-to-connect hydraulic hoses and fittings for fast setup
Versatile Application:
Supports auger diameters from 100mm to 750mm for a wide range of tasks
Optional Accessories:
Hitches and auger bits available for specific job requirements
๐ HFP3500 Specifications
Feature
Specification
Carrier Compatibility
2.5–4.5 Ton Excavators & Skid Steers
Maximum Torque
≤3614 N·m
Pressure
240 Bar
Oil Flow Range
30–68 L/min
Rotary Speed
32–72 rpm
Hydraulic Hose Connection
1/2 Inch
Output Shaft Diameter
ะค65 mm
Unit Weight
71 Kg
Unit Height
700 mm
Unit Max. Diameter
244 mm
Auger Diameter Range
100–750 mm
Auger Length
1200 mm
๐ฆ Package Includes
HFP3500 Series Auger Drive
Hydraulic hoses and adaptors Note:
Quick connects to your machine are not included
๐ก๏ธ Warranty & Support
2 Year Warranty
Lifetime After-Sales Support
๐ Delivery Information
Standard shipping (website checkout) is to nearest depot or commercial business with forklift facilities.
Residential/farm deliveries are also available, but all properties with a house are considered residential deliveries by freight companies
and freight costs are higher. Please contact us for a quote
if you want residential delivery.
