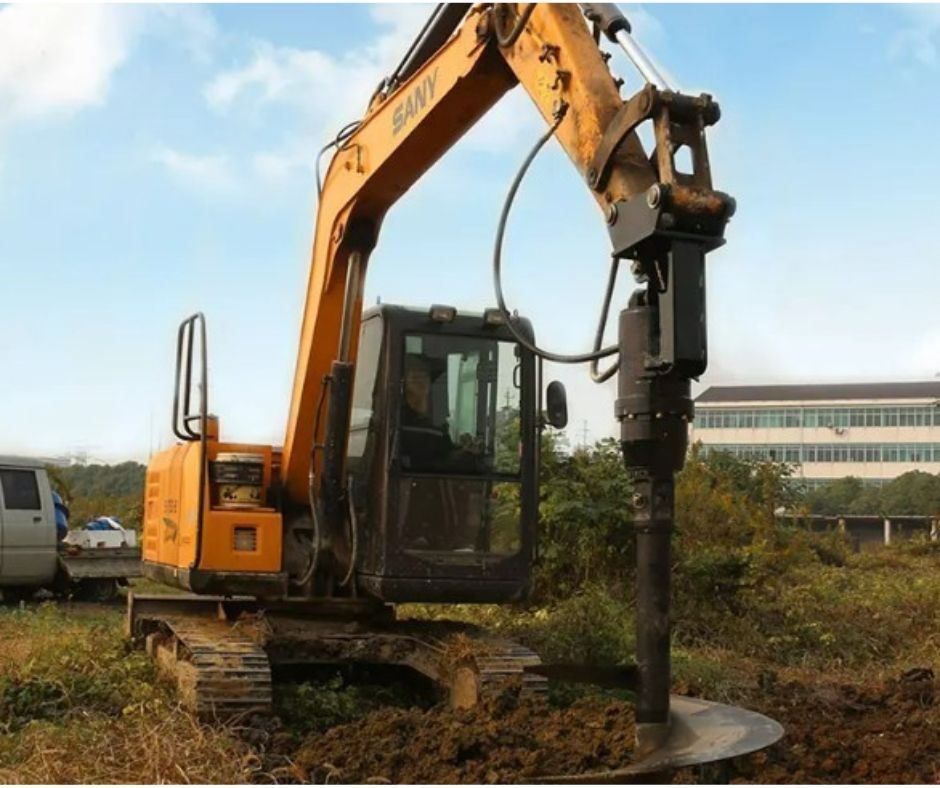

HFP5500 Hydraulic Auger Drive For Excavators | 5 to 7 Ton Excavators | 75mm Square Output Shaft | $4,490 inc GST

High-Torque Hydraulic Auger Drive For Professional Drilling Applications

The HFP5500 Hydraulic Auger Drive is engineered for excavators operating in the 5 to 7 tonne class, delivering exceptional torque output, controlled drilling performance, and long service life across demanding drilling applications.

Designed for fencing, footing installation, foundation drilling, piling preparation, tree planting, utility installation, civil construction, agricultural projects, and infrastructure works, the HFP5500 provides increased drilling capability while maintaining smooth hydraulic control and excellent reliability.

Built for Australian conditions, this auger drive is ideally suited to contractors, councils, government departments, utility providers, hire fleets, OEMs, and procurement managers seeking a dependable and serviceable auger solution.

Designed for Australian operating conditions and backed locally by ST Engineering and HFP Attachments for expert advice, fitment support, parts, and after-sales service.

KEY FEATURES & BENEFITS

• High torque hydraulic drive system

• Up to 5,910Nm torque output

• Heavy-duty epicyclic gearbox

• 75mm square output shaft

• Supports auger diameters from 150mm to 750mm

• Smooth drilling performance across varied ground conditions

• Suitable for fencing, footings, tree planting, utility installation and civil construction

• Hydraulic hoses and adaptors included

• Built for Australian conditions

• 2-Year Manufacturer's Warranty

SUITABLE APPLICATIONS

Ideal for:

• Fence post installation

• Rural fencing

• Tree planting

• Utility installation

• Foundation drilling

• Footing installation

• Civil construction

• Agricultural applications

• Sign installation

• General earthworks

• Piling preparation

FUNCTIONAL OVERVIEW

The HFP5500 is designed to deliver increased torque output while maintaining smooth rotation and hydraulic efficiency.

Its high-capacity hydraulic motor and heavy-duty epicyclic gearbox provide efficient torque multiplication, allowing operators to complete demanding drilling tasks with excellent control and reliability.

The 75mm square output shaft provides increased strength and durability for larger augers and higher torque applications.

DESIGN & CONSTRUCTION

High-Torque Hydraulic Drive System

Designed to deliver strong, consistent torque output in demanding drilling conditions.

Epicyclic Gearbox

Provides efficient torque multiplication and extended service life.

Heavy-Duty 75mm Square Output Shaft

Designed for secure torque transfer and long-term durability in demanding drilling applications.

Robust Housing Construction

Built to withstand repetitive commercial, civil, utility, and infrastructure drilling projects.

Excavator-Matched Design

Optimised for excavators in the 5 to 7 tonne class, providing excellent stability and drilling control.

MACHINE COMPATIBILITY

• Carrier Type: Excavator

• Typical Excavator Suitability: 5 to 7 Ton

• Suitable for all major excavator makes and models

Machine make and model details should be supplied to confirm hitch compatibility and mounting requirements.

SPECIFICATIONS

Feature	Specification
Excavator Compatibility	5–7 Ton
Maximum Torque	5,910Nm
Operating Pressure	240 Bar
Oil Flow Range	45–83 L/min
Rotary Speed	28–50 RPM
Hydraulic Hose Connection	1/2 Inch
Output Shaft	75mm Square
Unit Weight	108kg
Unit Height	780mm
Maximum Diameter	269mm
Supported Auger Series	S5
Supported Auger Length	1500mm
Supported Auger Diameter	150–750mm

Specifications are indicative only and may vary depending on supplier updates and ongoing product improvements.

PACKAGE INCLUDES

• HFP5500 Hydraulic Auger Drive

• Hydraulic hoses and adaptors

Auger bits are sold separately.

Machine-side quick connects are not included.

Optional mounting configurations available:

• Double Pin Cradle Hitch

• Double Pin Hitch

• Single Pin Hitch

IMPORTANT INFORMATION

To ensure correct fitment and operation, please provide:

• Machine make

• Machine model

• Pin diameter

• Pin centre to pin centre

• Width between ears

• Quick hitch type

• Auxiliary hydraulic flow

• Auxiliary hydraulic pressure

This attachment is custom-configured to suit your excavator setup.

Final configuration and fitment are based on the specifications supplied by the customer.

Machines fitted with quick hitches may require additional clearance considerations depending on hitch design and geometry.

Product images are for illustrative purposes only.

Custom colours are available on request to suit fleet, council, government, utility, contractor, and corporate requirements.

Colour, decals, hydraulic hose routing, and minor design features may vary between production runs and ongoing product improvements.

Machine specifications should always be confirmed prior to ordering to ensure correct fitment and hydraulic compatibility.
