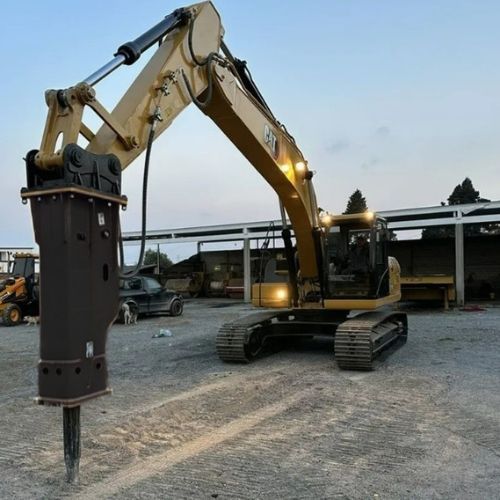

Hydraulic Rock Breaker (Silenced Type) – 20–25 Tonne Excavators
This Hydraulic Rock Breaker is designed for 20–25 tonne excavators, delivering efficient, high-performance rock and concrete breaking. The advanced oil circuit system reduces oil consumption while improving operational efficiency. Its simple, robust structure makes maintenance easy and ensures long-term reliability.
Built with convenience in mind, this breaker features adjustable operation settings and a high blow frequency for fast, effective work across tough rock, concrete, and demolition applications.
✅ Key Features:
Silenced design for reduced noise and vibration
Advanced oil circuit system for lower oil consumption
High work efficiency with adjustable operation
Simple structure with fewer components for easy maintenance
Suitable for 20–25 tonne excavators
⚙️ Specifications Table:
Specification
Detail
Body Weight (including chisel)
850 kg
Total Weight
1898 kg
Size (LxWxH)
2847 × 560 × 710 mm
Hydraulic Oil Flow
130–150 L/min
Hydraulic Pressure
160–180 kg/cm²
Blow Frequency
400–800 bpm
Chisel Diameter
135 mm
Carrier Weight Range
20–25 tonne
📦 Package Includes:
Hydraulic Rock Breaker (Silenced Type)
Chisel
Hydraulic hoses & fittings
Attachment pickup head bracket
Operator manual
🛡️ 12-month warranty + lifetime support
🚚 Delivery Information: • Standard shipping (website shipping through checkout) is to nearest depot or commercial business with forklift facilities. • Residential/farm deliveries are also available but all properties with a house are considered residential deliveries by freight companies and the freight costs are higher. Please contact us for a quote if you want residential delivery.
