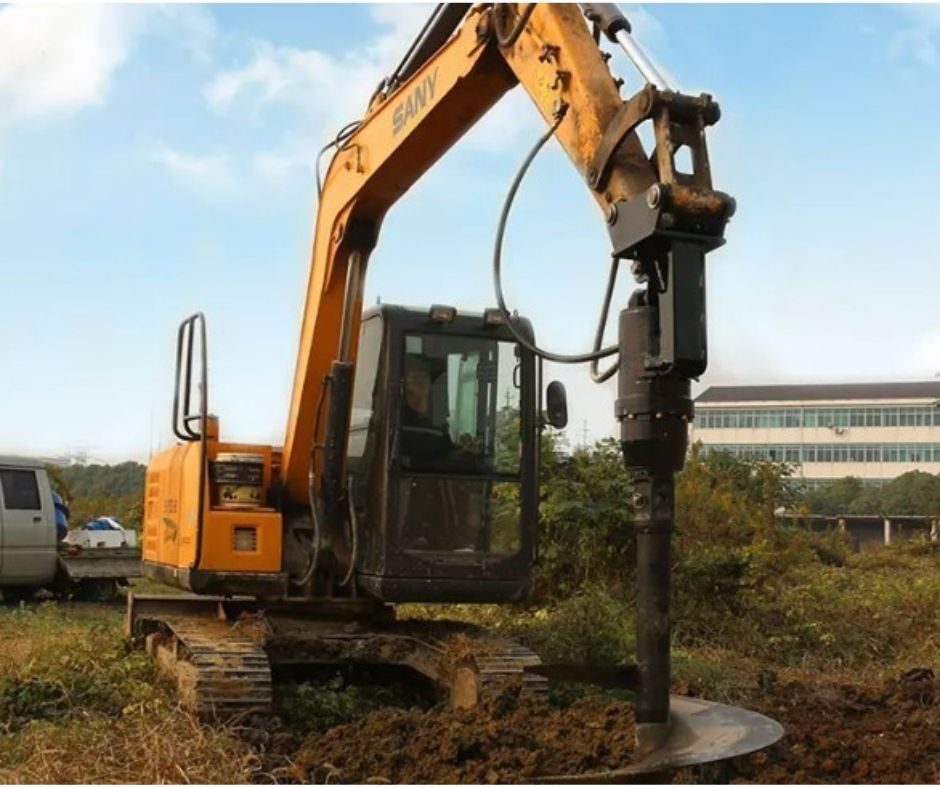

Ultra High-Torque Hydraulic Auger Drive – $7,990 inc GST | 13–17T Excavators | 11,976Nm Torque
Ultra High-Torque Hydraulic Auger Drive
$7,990 including GST.
The HFP12000 Series Hydraulic Auger Drive is engineered for demanding drilling applications requiring extreme torque output, controlled hydraulic performance, and long-term reliability across civil, infrastructure, agricultural, and commercial projects.
Designed for 13–17 tonne excavators, this ultra high-torque auger drive delivers exceptional drilling performance for large-diameter footings, piling preparation, utility installations, fencing, foundation drilling, and infrastructure applications.
Built for Australian conditions, the HFP12000 Series is ideally suited to contractors, hire fleets, councils, utilities, and OEM applications requiring a heavy-duty, serviceable auger solution for large excavator platforms.
Backed locally by ST Engineering and HFP Attachments for expert advice, fitment support, parts availability, and after-sales service.
FUNCTIONAL OVERVIEW
Functional Overview
Auger drives in this class must deliver extremely high torque while maintaining smooth rotational control and hydraulic stability under continuous load.
The HFP12000 Series achieves this through a high-capacity hydraulic motor combined with a heavy-duty epicyclic gearbox, delivering efficient torque multiplication and controlled drilling performance across a wide range of soil profiles and ground conditions.
Its ability to support very large auger diameters allows a single drive unit to cover demanding civil and infrastructure drilling applications without compromise.
DESIGN & CONSTRUCTION
Design & Construction
Ultra High-Torque Hydraulic Drive System
Designed to deliver consistent torque output for very large auger diameters and hard ground conditions.
Heavy-Duty Epicyclic Gearbox
Efficient torque multiplication for improved drilling performance and extended service life.
Heavy-Duty Square Output Shaft
75mm square output shaft engineered for secure torque transfer and long-term durability under high loads.
Reinforced Housing Construction
Built to withstand continuous drilling in commercial, civil, and infrastructure environments.
Excavator-Matched Balanced Design
Optimised for 13–17T excavators to maintain stability and precise control during operation.
MACHINE COMPATIBILITY
Machine Compatibility
| Feature | Specification |
|---|---|
| Carrier Type | Excavator |
| Excavator Class | 13–17 Ton |
| Compatibility | All major excavator makes and models |
Machine make and model details must be provided during checkout or emailed after purchase to ensure correct hitch configuration.
TECHNICAL SPECIFICATIONS
Technical Specifications – HFP12000 Series
| Parameter | Specification |
|---|---|
| Excavator Compatibility | 13–17 tonne |
| Maximum Torque | 11,976 N·m |
| Operating Pressure | 240 bar |
| Oil Flow Range | 80–140 L/min |
| Rotary Speed | 22–43 rpm |
| Hydraulic Hose Connection | 1 inch |
| Output Shaft Type | 75mm square |
| Supported Auger Diameter | 150mm – approx. 1200mm |
WHAT'S INCLUDED
What’s Included
- HFP12000 Series hydraulic auger drive
- Hydraulic hoses and adaptors
Note:
- Auger bits sold separately
- Machine-side quick connects not included
OPTIONAL CONFIGURATIONS
Optional Hitch Configurations
Available configurations include:
- Double pin cradle hitch
- Double pin hitch
- Single pin hitch
IMPORTANT INFORMATION
Important Information
Please confirm your machine make and model, along with:
- Pin diameter
- Pin centre to pin centre
- Width between ears
- Hitch configuration
This ensures correct fitment prior to manufacture and dispatch.
SUITABILITY
Suitability
Suitable for a wide range of excavator brands including:
CAT, Komatsu, Hitachi, Kobelco, Volvo, Hyundai, Case, JCB, Doosan, Kubota, Takeuchi, New Holland, Wacker Neuson, Yanmar, and many more.
Designed for applications including:
- Civil construction
- Infrastructure projects
- Utility installation
- Foundation drilling
- Piling preparation
- Bulk fencing
- Agricultural drilling
WARRANTY & SUPPORT
Warranty & Support
- 2-Year Manufacturer’s Warranty
- Ongoing after-sales technical support
- Local parts availability and service assistance
Designed for long-term deployment in commercial, fleet, and government environments.
FREIGHT & DELIVERY
Freight & Delivery
Delivery is typically arranged to:
- Your nearest freight depot, or
- A commercial business with forklift facilities
Residential and farm delivery is also available — freight quotation required.
Please note any property with a dwelling is classified as residential by freight carriers and may incur additional charges.
Pickup available from Kilsyth VIC.
WHY CHOOSE HFP ATTACHMENTS
Why Choose HFP Attachments
Most suppliers just import and move boxes — then you’re on your own. HFP is different.
- Imported and Australian-made attachments backed locally
- Expert advice from purchase through to installation
- Local warranty, repairs, and technical support
- Experienced team who understand hydraulic systems and real-world drilling applications
With HFP, you get the right attachment, correctly configured, and backed by local support.
